Features & Benefits
- WVR5000 – HD/SD-SDI Compact Video Rasterizer
- WVR4000 – SD-SDI Compact Video Rasterizer
- Convenient 1 RU Half-rack Instrument, Ideal for Space-constrained Environments
- AC and DC Power Options
- Patented Gamut Displays Facilitate Compliance Verification
- TandemVu® Display for Efficient Camera Adjustments
- Error Log for 10,000 Events Simplifies Error Correction Tasks
- Fully Digital Processing for Accurate, Repeatable, Drift-free Operation
- Ethernet Port allows for Easy Download of Screenshots and Error Log
- Freeze Mode for Trace and Picture Displays
- Equipped Standard with Monitoring Capacity for 16 Channels of Embedded Audio (up to 8 Simultaneously) and 1 AES Audio Input
- Front-panel Headphone Port for Easy Monitoring of Audio Channels
- Audio Bars and Lissajous Displays for Verification of Audio on the Same Instrument
- 32 User-configurable Presets for Quick Recall of Commonly Used Configurations
- User-definable Safe Area Graticules Facilitate Editing Tasks
- Patented Tektronix Timing Display Makes Facility Timing Easy
- Picture Thumbnail with Line-select Marker
- Intuitive User Interface, Backlit Buttons, and Online Help
- High-resolution DVI-I Output for Crisp, Easy-to-Read Displays
- Passive Loopthrough Inputs for Transparent Monitoring at any Point of the Signal Path even when Instrument Power is Off
- Front-panel USB Port for Easy Transfer of Instrument Presets and Screenshots
- SNMP Control for Easy Systems Integration
Applications
- Confidence Monitoring of SDI Video and Uncompressed Digital Audio
- Compliance Checking in Distribution and Broadcast
- Content QA in Production and Post Production
- Portable Monitoring on Camera and Field Production
The WVR5000 and WVR4000 Compact Video Rasterizers provide an ideal solution for basic video and audio monitoring needs in a convenient 1 RU half-rack form factor, suitable for space-constrained environments. These versatile instruments provide options to accept power from a 12 V DC source or a 100-240 V AC converter.
Both models come standard with support for 16 channels of Embedded Audio and 1 input for 2 channels of Digital AES Audio.
WVR5000
Supports HD-SDI (SMPTE 292M) and SD-SDI (ITU-R BT.601) monitoring applications. It provides HD/SD format auto-detect.
WVR4000
Supports SD-SDI (ITU-R BT.601) monitoring only.
These instruments provide the reliability of the Tektronix waveform rasterizers family in a compact, basic monitoring product.
Tektronix Excellence
WVR5000 and WVR4000 offer uncompromised monitoring quality with sharp CRT-like traces, patented Gamut displays, picture thumbnail, display freeze, and an error log for 10,000 events for efficient content compliance verification.
Digital Audio and Video Monitoring in One Instrument
These instruments provide standard digital audio monitoring with Audio Bars, Lissajous Displays, and front-panel headphone port for easy compliance verification of digital audio without the need for an additional piece of equipment.
Ease of Use
The intuitive user interface provides backlit buttons, and online help.
32 user-configurable presets allow users to recall commonly used configurations tailored to your personal work practices. These presets can be transferred to and from other units (same model) using the front-panel USB port.
The Passive loopthrough inputs allow for transparent monitoring at any point of the signal path even if instrument power is off.
An Ethernet port allows for easy download of screenshots and the Error log.
See and Solve with Tektronix Displays
The “See and Solve” displays in Tektronix video monitors simplify video monitoring tasks such as calibration, error detection, and content correction allowing the user to detect errors at a glance and troubleshoot them efficiently.
Tektronix displays offer the sharpest CRT-like trace quality for clear and accurate video and audio monitoring with the look and feel of an analog display. With several sweep rates and easy control of vertical gain and horizontal magnification, you can efficiently monitor and measure video waveform parameters.
Specialized displays provide summarized, yet comprehensive reports of alarms, session, and status of content. Powerful displays such as Video Status show a condensed view of error statistics, signal format, presence of ancillary data, and more. These Tektronix-exclusive displays simplify monitoring tasks by providing important content information at a glance.

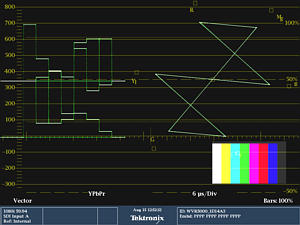

The vector display offers user-selectable graticules, color target, and color axis.
Patented Tektronix Gamut Displays – Efficiently Detect and Correct Gamut Problems
The patented Tektronix Diamond and Split Diamond displays enable Colorists, Editors, and Operators to visualize whether the content is RGB Gamut compliant with a single glance. Plus, they are designed to help isolate the Out-of-Gamut component just as easily.
For SDI component content that is destined for broadcast in composite systems, the unique Tektronix Arrowhead display can be used to monitor Composite Gamut compliance without the need for a separate encoder. Within this display, a separate upper and lower luma-only Gamut limit can be applied. This display is very useful for camera balancing.
Each of these displays offers user-selectable Gamut thresholds so Operators can set monitoring limits appropriate to their specific operation. In addition, Gamut monitoring is fully integrated with the powerful alarm logging and reporting capability of the WVR5000 and WVR4000.

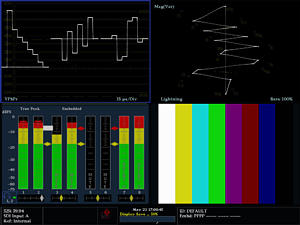

TandemVu® Display – Customized Waveform and Vector View
TandemVu provides the ability to visualize waveform and vector or lightning displays simultaneously. Each trace can be positioned and magnified individually based on the user's preferences.
TandemVu provides broadcast operators with an efficient way to adjust and balance cameras in studios or outside broadcast applications.
The Tektronix displays provide sharp traces without pixelation. The waveform display can be presented on parade and overlay modes in RGB, YPbPr, YRGB, or pseudo-composite formats. Both fixed and variable vertical gain are offered, each with the outstanding accuracy and repeatability that comes from a fully digital design.
The Line Select provides a line marker in full-screen and thumbnail picture modes.
The vector display is offered with selectable 75% and 100% targets.
Each display automatically selects the appropriate graticule based on the input format.

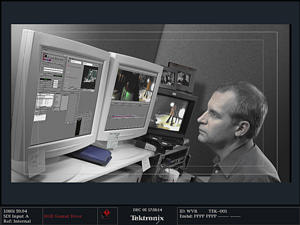

Picture Display – Quick Visual Confirmation and Precision Content Adjustment
For a qualitative view of the content, a full-color picture display is offered, which can be displayed as a full-screen presentation. This display is compatible with all input formats and features automatic adjustment for aspect ratio and number of active lines.
You can select brightup conditions that show the location of RGB or composite gamut errors on the picture display. The Line Select mode shows the location of the line currently selected within the picture display.
Users can choose from several Safe Action and Safe Title graticules on the picture display which help Editors and Operators easily identify incorrectly positioned video content such as graphics, titles, or logos.
Graticule choices include the Safe Action and Safe Title graticules defined in SMPTE RP218, ITU, and ARIB standards, plus two sets of completely flexible, user-definable graticules. These graticules facilitate editing tasks and reduce the need for format conversions.
Alarms, Quality Statistics, and Logging – Thorough and Fast Content Verification
The WVR5000 and WVR4000 offer a variety of displays designed to show status at a glance, in addition to the status bar continually displayed at the bottom of the screen.

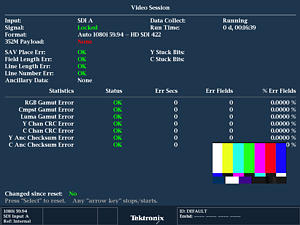

A comprehensive overview of the video content status is presented in the Video Session display. Offering a time-based compilation of information, this screen is ideal for presenting evidence of compliance after content screening. Information on input format and session time is presented, along with statistics on Error Detection and Handling (EDH) / Cyclic Redundancy Check (CRC) and Gamut errors.
The Alarm Status display provides continuous information on the state of each condition currently being monitored by the instrument.

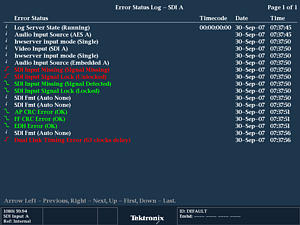

To support unattended monitoring applications, as well as provide documentation for service level agreements, these instruments maintain an error log of 10,000 events, which facilitates the detection and correction of problems. Log entries are recorded with date, time of day, and time code (VITC, LTC, ANC). The error log can be downloaded to TXT or HTM formats for easy record keeping and processing on spreadsheets or database software.
Digital Audio Capabilities – Equipped Standard
Audio monitoring capabilities for both Digital AES and Embedded Audio are available as standard in the WVR5000 and WVR4000.

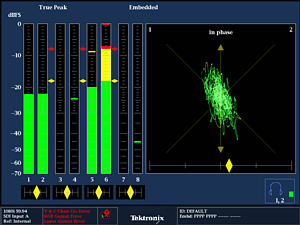

The instruments feature Level Bars display and both Bars and Lissajous display. These displays can be selected to provide monitoring for both Digital AES and Embedded Audio formats with up to eight channels (2 channels for AES Audio).
The level meters offer selectable meter ballistics and scaling plus they are user configurable. The Over and Silence settings augment digital clip and mute detection by letting users select levels to represent these conditions in the analog audio domain.
The Audio Session display records the highest true peak, as well as the number of mutes, clips, overs, and silences during the session time. Tektronix instruments provide accurate peak level measurements.
Timing Display – Quickly Confirm All Your Devices Are Synchronized
Synchronization is one of the most fundamental and critical procedures in a video facility. Every device in a system must be synchronized in order to successfully create, transmit, and recover video pictures and audio information. This intuitive display makes facility timing easy through a simple graphical representation which clearly shows the timing offsets between HD and SD signals relative to the reference.
The patented Tektronix Timing display presents a unique timing comparison between a digital (SD or HD) signal and a house reference signal (composite or tri-level sync), thus eliminating the complexity in timing SD an HD signals. Timing differences are displayed numerically in terms of vertical lines and horizontal time in µs relative to the house reference signal. A simple graphical display shows the relative timing of the input signal (the circle) versus the reference signal (the crosshair). When the two signals are properly timed, the circle changes from red to green color and is concentric with the crosshair.
Ordering Information
WVR5000
Waveform Rasterizer with support for HD-SDI and SD-SDI Serial Digital Monitoring (2 passive loopthrough inputs).
Digital audio monitoring in Embedded (16 channels) and AES/EBU (2 channels) formats.
Uses same physical inputs for HD and SD – auto-detect between HD and SD.
Note: Please specify power option when ordering.
WVR4000
Waveform Rasterizer with support for SD-SDI Serial Digital Monitoring (2 passive loopthrough inputs).
Digital audio monitoring in Embedded (16 channels) and AES/EBU (2 channels) formats.
Note: Please specify power option when ordering.
Options
Power Options
Option |
Description |
AC-DC Power Adapter |
|
A0 |
North America |
A1 |
Universal EURO |
A2 |
United Kingdom |
A3 |
Australia |
A5 |
Switzerland |
A6 |
Japan |
A10 |
China |
A11 |
India |
A99 |
No Power Cord or AC Adapter |
Accessories
Order Number |
Description |
Rackmount Accessories for WVR5000/4000 |
|
TVGF11A |
Full rack adapter for 1.75 inch rack space |
TVF16 |
Full rack adapter for zero clearance mounting |
Service Options
Option |
Description |
C3 |
Calibration Service 3 Years |
C5 |
Calibration Service 5 Years |
D1 |
Calibration Data Report |
D3 |
Calibration Report 3 Years (w/ C3) |
D5 |
Calibration Report 5 Years (w/ C5) |
G3 |
Complete Care 3 Years (includes loaner, scheduled calibration and more) |
G5 |
Complete Care 5 Years (includes loaner, scheduled calibration and more) |
R3 |
Repair Service 3 Years (including warranty) |
R5 |
Repair Service 5 Years (including warranty) |
CA1 |
Provides a single calibration event or coverage for the designated calibration interval, whichever comes first |
R1PW |
Repair Service Coverage 1 Year Post Warranty |
R2PW |
Repair Service Coverage 2 Years Post Warranty |
R3DW |
Repair Service Coverage 3 Years (includes product warranty period). Starts at the time of customer instrument purchase |
R5DW |
Repair Service Coverage 5 Years (includes product warranty period). Starts at the time of customer instrument purchase |
Manuals
User Manual CD in English, Simplified Chinese, and Japanese is supplied with the instrument.
Модель | Форм-фактор | Форматы видео | Форматы аудио | Измерения | Особые функции | Опции генератора |
WVR5000 | Ширина 1/2 стойки x высота 1RU x 18" | HD, SD | Встроенный, AES/EBU | Сигнал и вектор, индикаторы аудиосигнала | Базовый мониторинг HD и SD | — |
Characteristics
Video Input and External Reference Formats
The WVR5000 and WVR4000 rasterizers accept a wide variety of input signal formats and external references. The following chart illustrates all the video inputs (first column), cross referenced with their compatible external references.
Supported Input Formats |
External Reference Inputs |
|||||||||
NTSC |
PAL |
720p |
1080p/sF |
1080i |
||||||
59.94 Hz |
50 Hz |
50 Hz |
59.94 Hz |
60 Hz |
23.98 Hz |
24 Hz |
50 Hz |
59.94 Hz |
60 Hz |
|
483i, 59.94 Hz (525), BT601*1 |
X |
|
|
X |
|
|
|
|
X |
|
576i, 50 Hz (625), BT601*1 |
|
X |
X |
|
|
|
|
X |
|
|
720p, 23.98 Hz*2 |
X |
|
|
X |
|
X |
|
|
X |
|
720p, 24 Hz*2 |
|
|
|
|
X |
|
X |
|
|
X |
720p, 25 Hz*2 |
|
X |
X |
|
|
|
|
X |
|
|
720p, 29.97 Hz*2 |
X |
|
|
X |
|
|
|
|
X |
|
720p, 30 Hz*2 |
|
|
|
|
X |
|
|
|
|
X |
720p, 50 Hz*2 |
|
X |
X |
|
|
|
|
X |
|
|
720p, 59.94 Hz*2 |
X |
|
|
X |
|
X |
|
|
X |
|
720p, 60 Hz*2 |
|
|
|
|
X |
|
X |
|
|
X |
1035i, 59.94 Hz*2 |
X |
|
|
X |
|
|
|
|
X |
|
1035i, 60 Hz*2 |
|
|
|
|
X |
|
X |
|
|
X |
1080i, 50 Hz*2 |
|
X |
X |
|
|
|
|
X |
|
|
1080i, 59.94 Hz*2 |
X |
|
|
X |
|
|
|
|
X |
|
1080i, 60 Hz*2 |
|
|
|
|
X |
|
X |
|
|
X |
1080p, 23.98 Hz*2 |
X |
|
|
X |
|
X |
|
|
X |
|
1080p, 24 Hz*2 |
|
|
|
|
X |
|
X |
|
|
X |
1080p, 25 Hz*2 |
|
X |
X |
|
|
|
|
X |
|
|
1080p, 29.97 Hz*2 |
X |
|
|
X |
|
|
|
|
X |
|
1080p, 30 Hz*2 |
|
|
|
|
X |
|
|
|
|
X |
1080sf, 23.98 Hz*2 |
X |
|
|
X |
|
X |
|
|
X |
|
1080sf, 24 Hz*2 |
|
|
|
|
X |
|
X |
|
|
X |
1080sf, 25 Hz*2 |
|
X |
X |
|
|
|
|
X |
|
|
1080sf, 29.97 Hz*2 |
X |
|
|
X |
|
|
|
|
X |
|
1080sf, 30 Hz*2 |
|
|
|
|
X |
|
|
|
|
X |
*1 Available with the WVR5000 and WVR4000.
*2 Available with the WVR5000 only.
The rasterizer will automatically detect the signal format and establish the appropriate settings for the various displays. You can select an expected signal format from the list of supported formats. If the expected format and detected format differ, the instrument will report a format mismatch.
The instrument will signal a format mismatch if the applied external reference format is not compatible with the input signal.

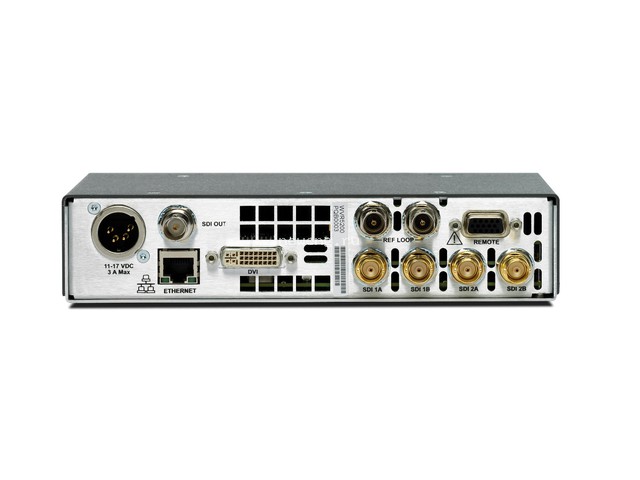

Serial Digital Video Interface
Characteristic |
Description |
Inputs |
2, only one active at a time |
For WVR5000, the inputs auto detect between HD and SD signals |
|
Input Type |
Passive loopthrough BNC, 75 Ω compensated |
Input Level |
800 mVp-p, ±10% |
Return Loss (Typical values) |
≥25 dB from 1 MHz to 270 MHz, power on ≥15 dB from 1 MHz to 270 MHz, power off >15 dB from 1 MHz to 1.5 GHz, power on or off |
Loopthrough Insertion Loss |
For HD, equivalent to 10 m of type 8281 cable |
Loopthrough Isolation |
>50 dB to 300 MHz |
Receiver Equalization Range |
Typically for SD, to 250 m of type 8281 cable; for HD to 100 m of type 8281 cable |
Monitor Output |
Signal Format (DVI-I Output) – 1024×768, 59.94 Hz vertical rate |
External Reference
Characteristic |
Description |
Sync Formats |
NTSC and PAL and tri-level sync |
Input Type |
Passive loopthrough BNC, 75 Ω compensated |
DC Input Impedance |
20 kΩ, nominal |
Return Loss |
>40 dB to 6 MHz >35 dB to 30 MHz |
Lock Range |
±50 ppm |
Serial Digital Waveform Vertical Characteristics
Characteristic |
Description |
Vertical Measurement Accuracy |
At 1x gain, ±0.5% of 700 mV full scale; at 5x gain, ±0.2% of 700 mV full scale |
Gain |
1x, 5x, variable range 0.25x to >7.5x |
Frequency Response |
|
SD |
Luminance (Y) channel ±0.5% to 5.75 MHz, Color Difference channels (Pb, Pr) ±0.5% to 2.75 MHz |
HD |
Luminance (Y) channel ±0.5% to 30 MHz, Color Difference channels (Pb, Pr) ±0.5% to 15 MHz |
Waveform Horizontal Deflection
Characteristic |
Description |
Sweep Timing Accuracy |
±0.1% |
Sweep Linearity |
±0.1% |
Audio Characteristics
Characteristic |
Description |
Level Meter Resolution |
0.056 dB steps at 30 dB scale from full scale to –20 dBFS |
0.20 dB steps at 70 dB scale for signals above –20 dBFS |
|
Meter Ballistics |
True peak, PPM type 1, PPM type 2, BBC PPM |
Defined/Programmable Level Detection |
Mute, clip, user-programmable silence, over |
Level Meter Accuracy over Frequency |
–0.5 dB (for analog), –0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to –40 dBFS sine wave, Peak Ballistic mode |
AES Inputs |
1 set of 2 channels, 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz, 24 bit
BNC, 75 Ω terminated, unbalanced, 0.2 V to 2 Vp-p
Return Loss: >30 dB relative to 75 Ω from 0.1 to 6 MHz |
Power
- 12 V DC In
- Power adapter accepts 100 to 240 V AC –10%, 50/60 Hz
Input Voltage
Characteristic |
Description |
Voltage Range |
12-15 V DC nominal |
10.75-18 V DC min-max operating |
|
Supply Connection |
XLR 4-pin male connector |
Pin 1 = V(–) |
|
Pin 4 = V(+) |
|
Pin 2, 3 NC |
|
Power Consumption |
22 W typical 30 W max |
Surge |
6 amps at 12 V |
Fuse Rating |
4 amp internal self-resetting fuse |
Transient, Over, and Reverse Voltage Protection |
Reverse and over voltage protected to ±30 V DC |
The unit may power itself down in the presence of high transient voltages. This prevents damage to the unit and is not a failure |
Physical Characteristics
Dimensions |
cm |
in. |
Height |
4.318 cm |
1.7 in. |
Width |
20.574 cm |
8.1 in. |
Depth (Front to back including handles and BNCs) |
45.72 cm |
18.0 in. |
Weight |
kg |
lb. |
Net |
1.7 kg |
3 lb. 12 oz. |
