Главные особенности
Oscilloscope + Power Analyzer in one instrument
· Static power analysis (like a power analyzer)
· Dynamic power analysis (unique to the MDA)
· Complete system debug capabilities (unique to the MDA)
Zoom+Gate
Comprehensive speed and torque interface
Harmonics Analysis option (MDA800-HARMONICS)
Intuitive, graphical user interface
· Static power analysis (like a power analyzer)
· Dynamic power analysis (unique to the MDA)
· Complete system debug capabilities (unique to the MDA)
Zoom+Gate
Comprehensive speed and torque interface
Harmonics Analysis option (MDA800-HARMONICS)
Intuitive, graphical user interface
Oscilloscope + Power Analyzer

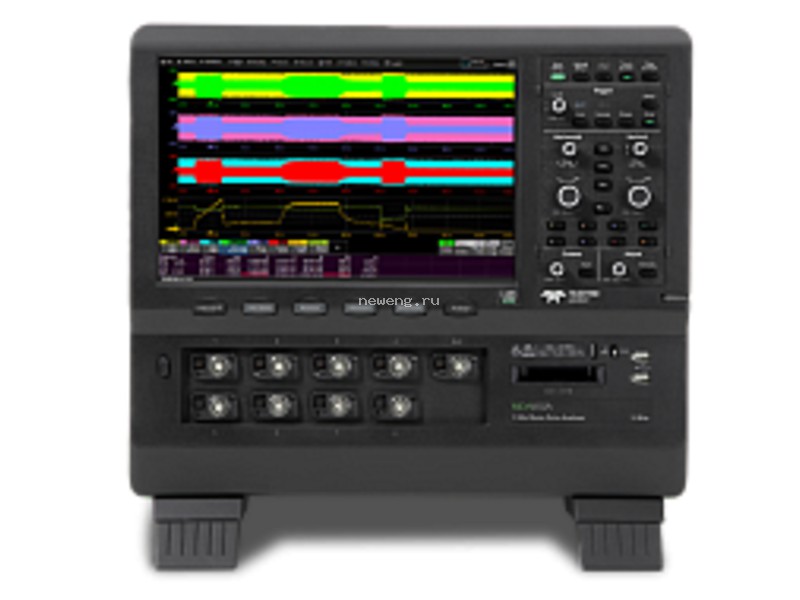

The Motor Drive Analyzer is built on the 8ch/12-bit HDO8000A platform. It contains all of the advanced oscilloscope capability you need for embedded control debug plus three-phase power and mechanical analysis with accuracy to within 1% of a dedicated power analyzer instrument.
Static Power Analysis
Like a power analyzer, the MDA can acquire short records under steady-state operating conditions and provide fast updates of mean value power quantities in the Numerics table. Power quantities can be calculated on a line frequency AC period, a variable frequency PWM output period, or over a very short time period, such as the device switching period.
Dynamic Power Analysis
Long memory (up to 250 Mpts/ch) permits capture and analysis of long periods of time (e.g. 25 seconds at 10 MS/s). Touch a Numerics table cell and create a per-cycle "synthesized" Waveforms of the parameter over time.Zoom+Gate adds further value for dynamic analysis. Correlate complex drive behaviors to other control or power system waveforms, and debug drive system problems faster.
Complete System Debug
Power Analyzer instruments perform only one function, and typical 4 channel oscilloscopes have limited capabilities for three-phase power system analysis. The Motor Drive Analyzer has 8 analog input channels (+16 optional digital channels) and three-phase power analyzer capability to debug the complete motor drive system.
Zoom+Gate
Zoom your acquisitions and Gate both the Numerics measurement table and the per-cycle Waveforms to the zoomed area. Gain deeper and faster understanding of complex drive and control system behaviors.
Harmonics Analysis Option
Apply a discrete fourier transform (DFT) harmonic filter to acquired voltage and current waveforms. Harmonically filter Numerics table results more accurately than brute force hardware filters. Display per-order Harmonics in a table along with up to 9 spectral waveforms. View per-cycle THD values over time.
Comprehensive Speed and Torque Interface
Interface digital or analog speed sensors with Angle Tracking Observer filtering. Extract speed information from CAN serial data. Use digital (MSO) inputs to conserve valuable analog channels. Interface a variety of torque sensors, extract torque from CAN serial data, or infer torque from motor current and a known torque constant. At your bench, calculate motor Speed and Torque without additional expensive equipment.
Intuitive, graphical user interface
An easy-to-understand user interface guides the operator through setup and analysis. Setup capability is provided for any combination of single-phase or three-phase drive input/output. Quick buttons provide fast access to advanced capabilities.
Опции:
Miscellaneous
OC1024-A
Deluxe oscilloscope cart with one tiltable shelf and additional storage
OC1021-A
Basic oscilloscope cart with one tiltable shelf
SOFTCASE
Memory Options
HDO8KA-XL
250 Mpt/Ch Memory Option for HDO8000A
HDO8KA-L
100 Mpt/Ch Memory Option for HDO8000A
Computer Upgrade
HDO8kA-16-UPG-32GBRAM
16 GB to 32 GB CPU RAM Upgrade Option
HDO8k-256GB-SSD-02
Addl 256GB Removable Solid-state Drive for HDO8000A. Includes Windows 7 OS, Teledyne LeCroy oscilloscope software and critical scope operational file duplicates
Mixed Signal Solutions
HDO8k-MSO
HDO8000 Series Model Mixed-Signal Option
Other Software Options
XDEV
Advanced Customization Package
EMC
Understanding an electronic design's susceptibility to Electronmagnetic (EM) discharge is an important element of validation. Whether fast one time event transients or repetitive bursts EM can introduce unexpected events in the circuit performance. Teledyne LeCroy Oscilloscopes offer high sample rates and measurements tailored specifically to this task. Whether one pulse or billions of measurements engineers gain insight into their device and system suseptibility.
Serial Data Analysis
SDM
Serial Data Mask Package
Digital Filtering Software
DFP2
Digital Fiter Package
Jitter Analysis Software
JITKIT
Validating system jitter performance and analyzing systems with high jitter levels comprises a significant portion of a system engineer's test and validation time. JITKIT makes it simple and easy to understand the basic system jitter performance of clock signals and clock-data activities, including period, half period, cyclecycle, skew, amplitude, differential voltage crossing, slew rate, and a wide variety of other common jitter measurements.
Power Analysis Software
Power Analyzer Package
Automatically and accurately analyze the performance of switched-mode power circuits
Serial Trigger and Decode
USB2bus TD
performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
USB2-HSICbus D
The comprehensive and intuitive deocde and easy to navigate table display enable a powerful toolset to quickly debug a USB 2.0 HSIC powered system. Combine it with ProtoSync to get a full view of all the USB 2.0 layers.
UART-RS232bus TD
The UART and RS-232 Trigger Decode solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
SPMI Decode
The MIPI System Power Management Interface (SPMI) decoder provides a fast and easy way to understand and correlate SPMI bus traffic to DC power rails and power management IC (PMIC) operations in mobile, handheld, and battery-powered embedded systems.
SPIbus TD
The SPI Trigger solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
SpaceWirebus D
The SpaceWire decode adds a unique set of tools to your Teledyne LeCroy oscilloscope that simplifies the design, debug, and maintenance of SpaceWire systems. The high speed SpaceWire data stream is annotated directly on the physical layer waveforms. Various sections of the protocol are color-coded to make it easy to understand the protocol traffic. The decoder provides an interactive table, search, and zoom to make debugging fast and effective.
SENTbus D
High-resolution SENT sensor and ECU message frames are intuitively decoded on the waveform, provided in an interactive table, and payload content search tools make debugging fast and effective.
NRZbus D
NRZ (non-return-to-zero) line code is a binary code in which 1s are represented by one significant condition (usually a positive voltage) and 0s are represented by some other significant condition (usually a negative voltage), with no other neutral or rest condition. NRZ Configurable protocol decoder enables grouping bits using various combinations of bit rate, polarity, idle condition, time out and more to decipherable messages. It allows decode of various protocols developed using NRZ encoding scheme.
Manchester Decode
Manchester coding is a line code in which the encoding of each data bit has at least one transition and 1s and 0s have equal bit width and therefore has no DC component. Manchester signals are self-clocking, which means that a clock signal can be recovered from the encoded data. Manchester Configurable protocol decoder enables grouping bits using various combinations of bit rate, polarity, idle condition, time out and more to decipherable messages. It allows decode of various protocols developed using Manchester encoding scheme.
LINbus TD
The LIN Trigger Decode (TD) solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
FlexRaybus TD
The FlexRay Trigger Decode (TD) solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
Ethernet Decode
Ethernet Decode Ethernet decoding provides protocol awareness to the oscilloscope for fast debugging.
DigRF v4 bus
The DigRF 3G and v4 decode are the ideal tools for powerful system level protocol debug as well as problem solving for signal quality issues. The DigRF decodes add a unique set of tools to your oscilloscope, simplifying how you design and debug MIPI digital RF systems.
DigRF 3G bus
The DigRF 3G decode is the ideal tool for powerful system level protocol debug as well as problem solving for signal quality issues. The DigRF 3G decode adds a unique set of tools to your oscilloscope, simplifying how you design and debug MIPI digital RF systems.
D-PHYbus D - Decode option
The MIPI D-PHY decode is the ideal tool for powerful system level protocol debug as well as problem solving for signal quality issues. The D-PHY decode solution adds a unique set of tools to your oscilloscope, simplifying how you design and debug MIPI D-PHY, CSI-2 and DSI signals.
CANbus TD
performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
CAN FDbus TD
The CAN FD Trigger Decode (TD) solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities for both CAN and CAN FD.
1553 TDME
The MIL-STD-1553 Trigger Decode solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
1553 TD
The MIL-STD-1553 Trigger Decode solution provides high performance triggers and transparent color-coded decode overlays, protocol tables, and search capabilities.
MDIO Decode
The Media Data Input/Output (MDIO) decoder provides a fast and easy way to understand and correlate MDIO bus traffic to the management of PHYs or physical layer devices in media access controllers (MACs).
AudioBus - I2S
Teledyne LeCroy’s Serial AudioBus trigger, decode, and graph package provides all the tools needed to properly analyze and debug digital audio buses. Teledyne LeCroy’s solution addresses the I2S, LJ, RJ, and TDM variations of the audio bus standard.
ARINC429bus DSymbolic
The ARINC 429 Decode (D) option provides Symbolic decode with transparent color-coded decode overlays, protocol tables, and search capabilities.
Mixed Signal Accessories
PK400-0
Extra Large Gripper Probe Set . Includes 22 probes
Remote Control/Network Options
USB2-GPIB
External USB 2.0 to GPIB IEEE 488.2 adapter
Пробники:
Пробники:
Высокоомные активные пробники
ZS1000-QUADPAK
Set of 4 ZS1000 Active Probes
ZS1500-QUADPAK
Набор из 4 пробников ZS 1500, 1,5 ГГц
ZS1500
Активный пробник, 1.5 ГГц, 0,9 пФ, 1 MOм
ZS1000
1 GHz, 0.9 pF, 1 MOhm Active Voltage Probe
Токовые пробники
DCS025
Deskew Calibration Source for CP030, CP030A, CP031, CP031A, AP015, CP150, CP500
CP150-6M
150 A, 5 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, 6 meter cable
CP030-3M
30 A, 10 MHz Current Probe - AC/DC, 30 A rms, 50 A Peak Pulse, 3 meter cable
DCS015
Deskew Calibration Source for AP015
CA10-QUADPAK
Programmable ProBus Current Adapter
CP500
Токовый пробник до 500 А, 2 МГц
CP150
Токовый пробник до 150 А, максимум 500 A < 30 мкс, 10 МГц
CP031A
Высокочувствительный токовый пробник до 30 A, 100 МГц
CP031
Токовый пробник до 30 A, 100 МГц
CP030A
Высокочувствительный токовый пробник до 30 A, 50 МГц
CP030
Токовый пробник до 30 A, 50 МГц
Пассивные пробники
PP026-1
500 MHz Passive Probe, 5mm, 10:1, 10 MOhm
PP023-1
500 MHz Passive Probe, 2.5mm, 10:1, 10 MOhm
PP018-1
500 MHz Passive Probe for HDO4000, 10:1, 10 MOhm
Probe Parts and Kits
PKIT4-5MM-101
Standard Accessory Replacement Kit for PP017/PP018
PK111
ZD replacement kit
PACC-ZD008
Replacement Leadset for ZD200
PACC-ZD007
Replacement Accessory kit for ZD200
PACC-ZD006
Small IC adapter for ZD differential probeQty 2
PACC-ZD005
Swivel tip adapter for ZD differential probeQty 1
PACC-ZD004
Tip saver for ZD differential probeQty 2
PACC-ZD003
Long spring ground for ZD differential probeQty 2
PACC-ZD002
Solder-in lead for ZD differential probeQty 2
PACC-ZD001
Y lead Adapter for ZD differential probesQty 1
Высоковольтный пробник с гальванической развязкой на основе технологии передачи аналогового сигнала через оптоволокно
HVFO-6M-FIBER
HVFO6m Optical Cable Acc'y
HVFO-2M-FIBER
HVFO 2m Optical Cable Acc'y
HVFO-1M-FIBER
HVFO 1m Optical Cable Acc'y
HVFO103-XMITTER
HVFO103 Spare Amp/Mod. Xmitter
HVFO100-40X-TIP
HVFO103 +/-40V (40x) Tip Acc'y
HVFO100-20X-TIP
HVFO103 +/-20V (20x) Tip Acc'y
HVFO100-1X-TIP
HVFO103 +/-1V (1x) Tip Acc'y
HVFO103
High Voltage Fiber Optic Probe, 60 MHz Bandwidth. Includes soft-carrying case. Requires attenuating tip (ordered separately). Includes Qty. 1 1m Fiber Optic Cable
Высоковольтные дифференциальные пробники
ADP305
Высоковольтный дифференциальный пробник 1 кВ, 400 В, 100 MГц
ADP300
Высоковольтный дифференциальный пробник, 1 кВ, 400 В, 20 МГц
AP031
Высоковольтный дифференциальный пробник (÷10, ÷100), 700 В, 25 MГц
HVD3605
Высоковольтный дифференциальный пробник, 6 кВ, 100 MГц
HVD3206-6M
Высоковольтный дифференциальный пробник, 2кВ, 120 MГц
HVD3206
Высоковольтный дифференциальный пробник, 2кВ, 120 MГц
HVD3106-6M
Высоковольтный дифференциальный пробник с 6 метровым кабелем, 1кВ, 80 MГц
HVD3106-NOACC
Высоковольтный дифференциальный пробник без наконечника, 1кВ, 120 MГц
HVD3106
Высоковольтный дифференциальный пробник, 1кВ, 120 МГц
HVD3102-NOACC
Высоковольтный дифференциальный пробник без наконечника, 1кВ, 25 МГц
HVD3102
Высоковольтный дифференциальный пробник, 1кВ, 25 МГц
Active Voltage Rail Probes
RP4000-UFL-PCBMOUNT
Qty. 10 U.FL 3mm x 3mm PCB mounts (additional to those supplied with RP4030)
RP4000-MCX-CABLE-UFL
Qty. 3 3 GHz MCX to U.FL ultra-miniature coax cable, 8cm long (add'l to those supplied with RP4030)
RP4000-MCX-PCBMOUNT
Power/Voltage Rail Probe. 4 GHz bandwidth, 1.2x attenuation, +/-30V offset, +/-800mV
RP4000-MCX-LEAD-SI
Qty. 3 MCX 4 GHz solder-in lead accessories (additional to those supplied with RP4030), 18cm long
RP4000-BROWSER
RP4030 350 MHz Browser Tip accessory. Includes 0 Ohm (1x), 450 Ohm (10x) and 950 Ohm (20x) tips.
RP4030
Power/Voltage Rail Probe. 4 GHz bandwidth, 1.2x attenuation, +/-30V offset, +/-800mV
Дифференциальные усилители
DA1855A-RM
DA1855A with rackmount
DA1855A-PR2-RM
Rack mountable version of the DA1855A-PR2
DA1855A-PR2
2 Ch, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DA101
10:1, 1 MOhm Passive Attenuator
DXC-5100
100:1, 2.5KV Passive High Voltage Probe Pair
DXC200
50 MHz low capacitance Passive Differential Probe Pair
DXC100A
Selectable 100:1 or 10:1 , Passive Differential Probe Pair
DA1855A
High-performance 100 MHz Differential Amplifier
Высоковольтные пассивные пробники
PPE6KV
Высоковольтный пробник , 1000:1 400 МГц, 5 MOм/50 MOм
PPE5KV
Высоковольтный пробник , 100:1 400 MГц 50 MOм
PPE4KV
Высоковольтный пробник ,100:1 400 МГц , 50 MOм
HVP120
Высоковольтный пассивный пробник 1 Вскз , 400 МГц
Дифференциальные пробники (<= 1.5 ГГц)
ZD500
Активный дифференциальный пробник 500 MГц, 1,0 пФ, ±8 V
ZD200
Активный дифференциальный пробник, 200 МГц, 3,5 пФ, 1 МОм, ±20 В
ZD1500
Активный дифференциальный пробник, 1,5 ГГц, 1.0 пФ, ±8 V
ZD1000
Активный дифференциальный пробник, 1 ГГц, 1,0 пФ, ±8 В
AP033
Дифференциальный пробник до 500 МГц
Адаптер для пробников
CA10
Programmable ProBus Current Adapter
TPA10-QUADPAK
Set of 4 TPA10 ProBus Probe Adapters
TPA10
ProBus Probe Adapter for TekProbe-BNC Probes
Канал вертикального отклонения
| Полоса пропускания | 1 ГГц |
| Аналоговая полоса пропускания 50 Ом (-3 дБ) (ProBus вход) | 1 ГГц (≥1 мВ/дел) |
| Аналоговая полоса пропускания 1 МОм (-3 дБ) (ProBus вход) | 500 МГц |
| Время нарастания (10-90%, 50 Ом) | 450 пс |
| Время нарастания (20-80%, 50 Ом) | 340 пс |
| Число каналов | 8 |
| Ограничение полосы пропускания | 20 МГц, 200 МГц |
| Входной импеданс | 1 МОм ± 2.0% / 16 пФ; 50 Ом ± 2.0% |
| Входное соединение | 1 МОм: открытый, закрытый, заземлено; 50 Ом: закрытый, заземлено |
| Максимальное входное напряжение | ±30V Peak |
| Вертикальное разрешение | 12 бит; до 15 бит при включении программного увеличения разрешения (ERES) |
| Чувствительность | 50 Ом: 1мВ – 1 В/деление с возможностью плавной регулировки коэффициента отклонения 1 МОм: 1 мВ – 10 В/деление с возможностью плавной регулировки коэффициента отклонения |
| Погрешность установки коэффициента усиления | ± 0,5 % от полной шкалы |
Канал горизонтального отклонения
| Опорный генератор (ОГ) | Internal timebase common to 8 input channels; an external clock may be applied at the auxiliary input for acquisition of channels 1-4 (channels 5-8 disabled) |
| Временной сдвиг между каналами | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Погрешность ОГ | +/-2.5ppm + 1.0ppm/year from calibration |
Система сбора данных
| Частота дискретизации | 10 ГГц на 8 каналов |
| Эквивалентная частота дискретизации | 125 ГГц для периодических сигналов (20 пс/дел – 10 нс/дел) |
| Максимальная скорость захвата осциллограмм | 1 000 000 осциллограмм/сек (сегментированный режим, до 8 каналов)) |
| Максимальный объем памяти | 250 МБ |
| Память | 50 МБ |
Обработка сигнала
| Программное увеличение разрешения (ERES) | от 12,5 до 15 бит |
| Интерполяция | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Система синхронизации
| Режимы запуска развертки | Нормальный, авторежим, одиночный, остановка |
| Источники синхросигнала | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Вид входа | DC, AC, HFRej, LFRej |
| Предзапуск | 0 – 100 % от полной длинны памяти |
| Послезапуск | 0 – 10,000 делений в режиме реального времени |
| Диапозон установки внешней синхронизации | Ext: ±0.4 В, EXT/10: ±4.0 В |
Виды синхронизации
| Стандартные виды синхронизации | Основная (фронт, длительность импульса, ТВ), интеллектуальная (глич, рант, интервал, окно, скорость нарастания, ожидание, логич. условия, логич. последовательности и пр.), каскадная, по результатам измерений, по последовательным данным в высоко- (опция для WaveMaster) и низкоскоростных потоках |
| Опциональные виды синхронизации по протоколам передачи последовательных данных | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Процессор
| Процессор вид | Intel® CoreTM i7-4790S Quad, 3.2 GHz (4.0 GHz in turbo mode) |
| Процессор оперативная память | ОЗУ 16 ГБ ( 32 ГБ при опциональном увеличении памяти) |
| Процессор операционная система | Microsoft Windows® 7 Pro 64 bit Embedded |
Интерфейсы
| Дистанционное управление | По средствам Windows Automation, LeCroy Remote Command Set |
| GPIB | Опционально |
| Ethernet Port | 2 |
| USB (Device) | 1 |
| USB (Host) | 6 |
| Порт для подлкючения внешнего монитора | DisplayPort 1.2 compatible to support customer-supplied external monitor. Includes support for extended desktop operation with UHD 3840 x 2160 pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver). |
Пробники
| Пробники | 4 пассивных пробника (÷10) |
| Напряжение | 100… 240 В (± 10%), 45… 66 Гц; 100… 120 В (± 10%), 380… 420 Гц (автовыбор) |
| Максимальное потребляемое напряжение | 550 Вт |
| Размер (ВхШхГ) | 375 mm x 416 mm x 280 mm |
| Вес | 12,2 кг (21,8 в упаковке) |
| Гарантия и сервисное обслуживание | 3 года гарантии, калибровка рекомендуется ежегодно. Специальные программы предполагают расширенную гарантию и калибровку |
