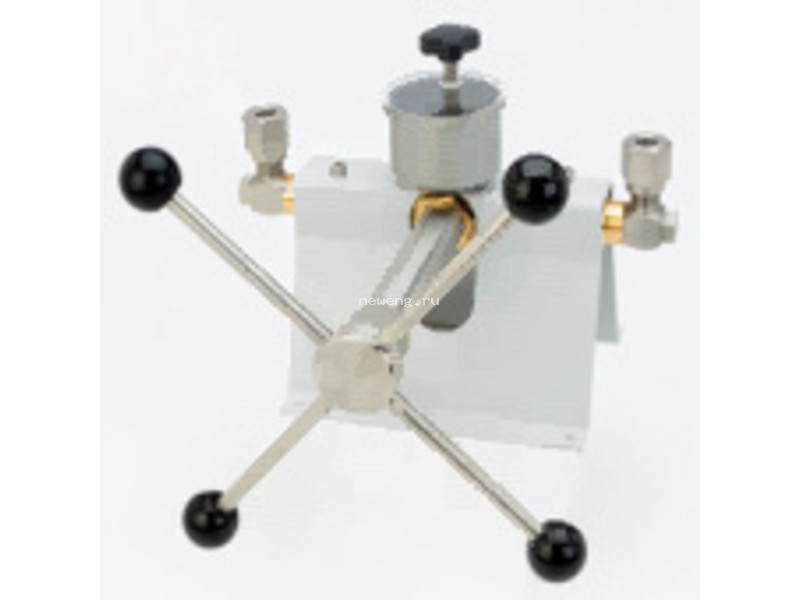

These instruments are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These hydraulic test pumps provide a quick and easy solution for checking pressure measuring instruments to 10,000 psi (700 bar).
- Generates pressures to 10,000 psi (700 bar)
- Bench mounted design
- Operational with a wide range of fluids
- Screw press for fine pressure adjustments
|
Specifications |
|
|
Pressure Range |
0 to 10,000 psi (700 bar) |
|
Test Port Adapters |
(2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP |
|
Instrument Size (W x D x H) |
11 x 11 x 10 in (280 x 280 x 254 mm) |
|
Instrument Weight |
11 lb (5 kg) |
|
Reservoir Volume |
75 cc |
|
Screw Press Displacement |
20 cc |
|
Fluid Media |
The standard O-ring seals are Nitrile®, Viton® or Ethylene Propylene seals are available for use with solvents, fuel oils, brake fluids or other similar aggressive fluids. |
