Fluke P5513 Pneumatic Comparison Test Pump

цена по запросу
шт.

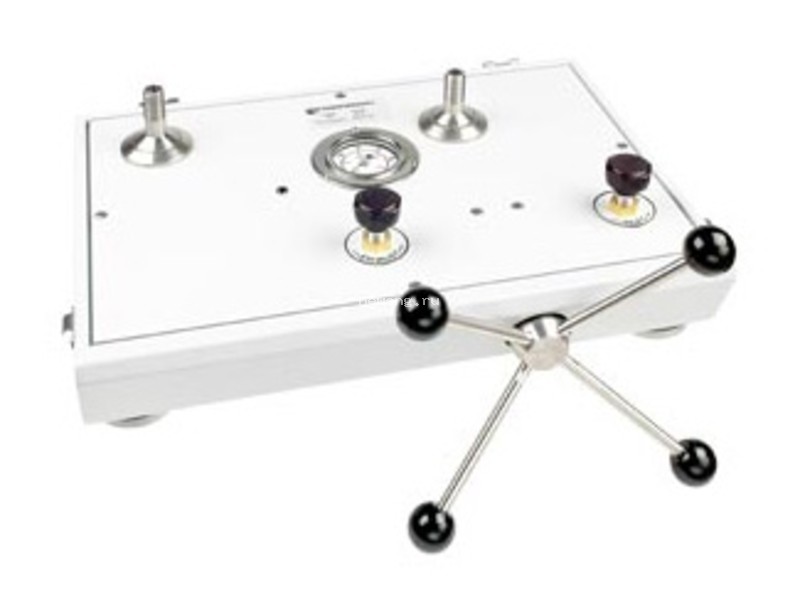

P5513 Pneumatic Comparison Test Pump

Описание Характеристики Файлы

Модель Название

Описание

P5510

Pneumatic Comparison Test Pump

Pressure range 0 to 3,000 psi (210 bar)

This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.

Features

  • High pressure pneumatic operation
  • Screw press for fine pressure adjustments
  • High quality needle valves for fine control
  • Test port adapters which require no PTFE tape or wrenches
  • Sturdy carrying case with lid

*Note --- Unit requires pressure source (i.e. nitrogen bottle) for operation.



Specifications

Pressure Range

0 to 3,000 psi (210 bar)

Instrument Size (W x D x H)

17.5 x 12 x 8.5 in (440 x 300 x 215 mm)

Instrument Weight

17 lbs ( 8 kg)

Test Port Adapters

2 sets, 1/8, 1/4, 3/8 and 1/2 NPT or BSP

Gas Supply Connection

1/4 NPT female
