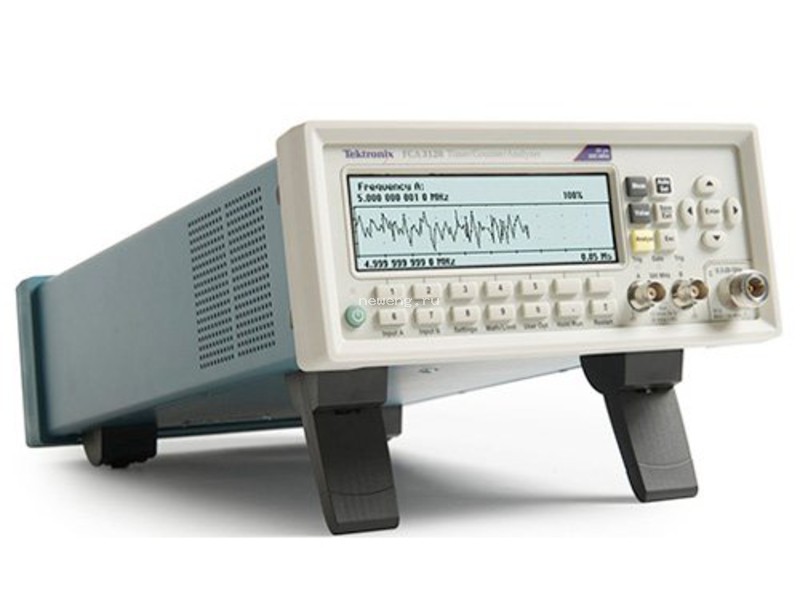

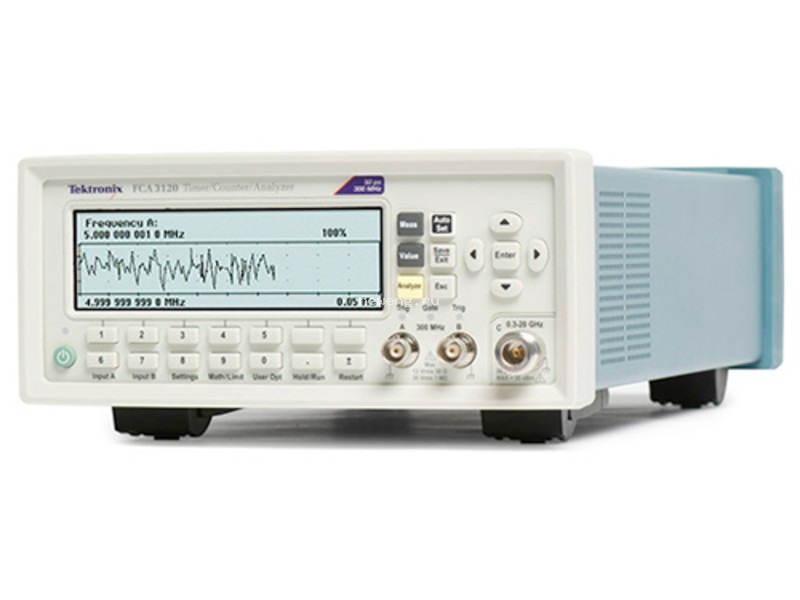

Tektronix FCA3000

цена по запросу
шт.

Частотомеры Tektronix FCA3000 и FCA3100 выполняют измерения в полосе до 20 ГГц и сочетает в себе множество различных функций. Обладая беспрецедентной разрешающей способностью, они позволяют обнаруживать очень малые изменения частоты и времени. Благодаря самым широким среди приборов этого класса средствам анализа сигналов, включая статистическую обработку измерений, построение гистограмм и графиков трендов эти приборы позволяют быстро и точно выполнять анализ сигнала.

Описание Характеристики Файлы

Features & Benefits

Key Performance Specifications

  • 300 MHz, 3 GHz, 20 GHz Models
  • 300-400 MHz in Manual Trigger Mode
  • Up to 3 Input Channels
  • 50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) Single-shot Time Resolution
  • 12 Digit/s Frequency Resolution
  • 0.001° Phase Resolution
  • 3 mV or better Voltage Resolution
  • Optional 5×10–8 High-stability Oven Time Base

Measurement Throughput

  • 250k Sample/s Data Transfer Rate to Internal Memory(Up to 3.75M samples stored)
  • Up to 15k Sample/s Data Transfer Rate over USB/GPIB Bus(Block mode)
  • Up to 650 Individually Triggered Measurements/s

Available Functions and Features

  • Automated Measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall Time, Phase Angle, Duty Cycle, Maximum Voltage, Minimum Voltage, Peak-to-Peak Voltage
  • Totalize Measurement (FCA3100 Series)
  • Multi-parameter Display
  • Trend Plot Mode
  • Measurement Statistics Mode
  • Histogram Mode
  • Allan Deviation
  • Zero Dead-time Frequency/Period Measurements
  • Continuous Data Streaming over USB/GPIB Bus during Measurement (FCA3100 Series)
  • Programmable Pulse Output from 0.5 Hz to 50 MHz

Connectivity

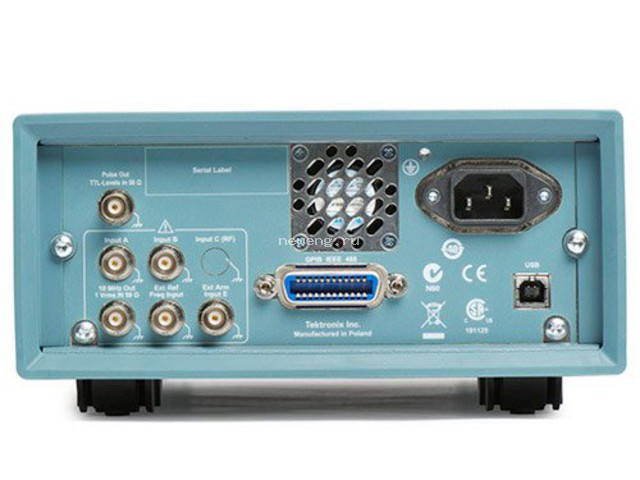

  • Optional Rear-panel Inputs
  • USB Device and GPIB Ports on Rear Panel for Quick PC Connectivity
  • GPIB Interface Supports Full SCPI-compatible Programmability and offers an Emulation Mode for Plug-and-Play Replacement in Existing ATE Systems
  • External Arming Input
  • 10 MHz Reference Oscillator Output
  • Includes National Instrument's LabVIEW SignalExpress™ TE Limited Edition Software for Connecting Your Bench
  • Optional TimeView™ Software Available for Modulation Domain Analysis

3-year Warranty

Feature-rich Tools for Precision Measurements

The FCA3000 and FCA3100 Timer/Counter/Analyzer Series pack many different functions into one feature-rich instrument. With industry-leading frequency and time resolution, the FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.

Industry-leading Performance for Demanding Designs

High-resolution is critical for R&D and production testing on today's demanding designs. The FCA Series delivers 12-digit/s frequency resolution and for time measurements, single-shot resolution of 50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) is available with measurement values displayed up to 14 digits. With industry-leading performance, the FCA Series provides you with fast, precise measurements.

Unique Features for Accurate Measurements

To ensure correct measurements of Allan Deviation, the FCA3100 Series offers a zero dead-time measurement technique and continuous time stamping of trigger events. This feature is vital for mechanical and medical measurements where every single cycle must be measured. The FCA3000 Series offers this functionality through the USB/GPIB interfaces with a raw time-stamping function.

For correct calculation of statistical parameters, the FCA Series comes standard with limit-qualifying capability. By setting limits, you can isolate one cluster in your calculation. This is important for applications such as verifying the jitter of digital pulses that appear in discrete clusters in CD players or in HDB3-coded data.

Also available is hysteresis compensation for time interval measurements. By adding hysteresis, you can reduce trigger-level error from the typical 15-20 mV found in most counters on the market today, down to a typical 2.5 mV. This means 6-8 times improved trigger precision in critical time interval measurements.

Fast Throughput Reduces Test Time

The FCA Timer/Counter/Analyzer Series offers industry-best throughput, saving you up to 90% on your testing time compared to other timer/counters on the market. Up to 250,000 measurement results per second can be stored in the internal memory. Alternatively, you can transfer up to 15,000 measurement results per second in Block mode through the GPIB or USB interface. For added flexibility, the FCA3100 Series offers a zero dead-time counter feature to continuously stream measurement data over the GPIB/USB bus during, not after, measurement. This creates a dynamic measurement and analysis system.

Analyze Your Device with the Industry's Only Graphical Display

With the unique display of the FCA Series, you can measure multiple parameters of the same signal from one test connection. To reveal signal quality issues like drift, intermittent transients, and stability, you can view the data as a real-time trend plot or a histogram with the FCA Series graphical display mode, or you can use measurement statistics to track how signal parameters are changing over time. A single-button Analyze mode gives you fast insight into the behavior of your device right on the timer/counter's display.

Multi-parameter Display



Multi-parameter Display.


With the multi-parameter display, you can read important auxiliary measurement values (such as Vmax, Vmin, Vp-p, and more) displayed with your main frequency, time, period, or phase measurements. With one glance, you can see the information you need to quickly assess your device's performance.



Phase Relationship Measurement.

With up to 3 input channels, you can measure the relationship between different signals. For example, you can measure the phase relationship between the input and output signals of your device. You can read other critical parameters simultaneously, such as the test frequency of the signal and the voltage ratio (in dB), in one glance with the multi-parameter display.

Measurement Trend Plots



Trend Plot Analysis.

Depending on your test case, your signal parameters may change from instant to instant. With the Trend Plot Analysis mode, you can graphically plot the trend of a measured value over time.

Measurement Statistics



Measurement Statistics.

With integrated statistics processing, you can calculate the average, standard, and Allan deviation of a measurement, as well as track the minimum and maximum measured values, all with the push of a button.

Histogram Plots



Histogram Plot.

To graphically see the average and standard deviation of a set of measurements, you can use the histogram function to see the distribution of measurement results.

Optional Modulation Domain Analysis



Tektronix TimeView™ Software.

With the optional Tektronix TimeView™ software (TVA3000), the FCA Timer/Counter/Analyzer Series can become a high-performance modulation domain analyzer. With high measurement speeds (up to 250k measurement/s) and large memory depth (up to 3.75M points), fast frequency changes can be captured in real time and then analyzed with TimeView. This comprehensive software tool allows for remote instrument control, and the analysis and display of measurement results in a choice of graphs. For example, results can be displayed as raw data, statistical histogram, waveform graph (as if you were using an oscilloscope), or as an FFT spectrum graph. TimeView further allows analysis of modulation parameters like modulation depth or frequency modulation index.

Designed to Make Your Work Easier

The FCA Timer/Counter/Analyzer Series are designed with the ease of use and familiar operation you have come to expect from Tektronix.

Intuitive Operation

Menu-oriented settings reduce the risk of mistakes. With dedicated and menu-driven front-panel buttons, you will have fast access to frequently used functions and parameters, reducing setup time. For example, a single-touch Analyze key toggles you between Statistics, Trend Plot, and Histogram modes.

Autoset Function

Similar to Tektronix oscilloscopes, the front-panel Autoset button will automatically set optimum trigger levels and hysteresis adapted to the actual signal applied.

Easy PC Connectivity

Connect to your PC with the rear-panel GPIB or USB device ports. The GPIB interface operates in SCPI/GPIB for plug-and-play replacement in existing ATE systems or easy integration into larger test systems. If desired, an emulation mode for existing timer/counters is available.

Connect Your Bench for Intelligent Debug

Easily capture, save, and analyze measurement results from your FCA Series timer/counter/analyzer with the special Tektronix Edition of National Instruments LabVIEW SignalExpress™ software. Every FCA Series timer/counter/analyzer ships with a free copy of the Limited Edition version of SignalExpress for basic instrument control, data logging, and analysis. The optional Professional Edition offers over 200 built-in functions that provide additional signal processing, advanced analysis, sweeping, limit testing, and user-defined step capabilities.

SignalExpress supports the range of Tektronix bench instruments*1 enabling you to connect your entire test bench. You can then access the feature-rich tools packed into each instrument from one intuitive software interface. This allows you to automate complex measurements requiring multiple instruments, log data for an extended period of time, time-correlate data from multiple instruments, and easily capture and analyze your results, all from your PC. Only Tektronix offers a connected test bench of intelligent instruments to simplify and speed debug of your complex design.

Performance You Can Count On

In addition to industry-leading service and support, every FCA Series timer/counter/analyzer comes backed with a three-year standard warranty.

Select the Performance/Features to Meet Your Needs

Feature

FCA3100 Series

FCA3000 Series

Frequency Resolution

12 digit/s

12 digit/s

Time Resolution

50 ps

100 ps

Voltage Resolution

1 mV

3 mV

Meas. Speed to Internal Memory

250k measurement/s

3.5M results

250k measurement/s

750k results

Talker-only Output (GPIB/USB)

4k measurement/s

No

Individually Triggered Measurements

650/s

500/s

Block Transfer Speed

15k measurement/s

5k measurement/s

Frequency/Period, Time, Phase, Volt, Duty Cycle, Pulse, Rise Time

Yes

Yes

Graphic Display of Trend, Histogram, Modulation Domain

Yes

Yes

Totalize, TIE

Yes

No

Programmable Pulse Output

Yes

No

Continuous Measurements

Yes

No

*1 For a complete listing of Tektronix instruments supported by NI LabVIEW Signal Express

Ordering Information

Models

Model

Description

FCA3000

Timer/Counter/Analyzer 300 MHz / 100 ps

FCA3003

Timer/Counter/Analyzer 3 GHz / 100 ps

FCA3020

Timer/Counter/Analyzer 20 GHz / 100 ps

FCA3100

Timer/Counter/Analyzer 300 MHz / 50 ps

FCA3103

Timer/Counter/Analyzer 3 GHz / 50 ps

FCA3120

Timer/Counter/Analyzer 20 GHz / 50 ps

FCA3000/3100 Series Include: Timer/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual (English, French, German, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Japanese), Programmer's Guide, Technical Specifications, Trial version of TimeView™ Software, and CD-ROM with National Instruments LabVIEW SignalExpress™ Tektronix Edition, Limited Edition Software.



Note: Please specify power plug when ordering.



Instrument Options

Option

Description

MS

Medium-stability Oven Time Base

HS

High-stability Oven Time Base

RP

Rear-panel Connectors

Power Plug Options

Option

Description

A0

North America

A1

Universal Euro

A2

United Kingdom

A3

Australia

A5

Switzerland

A6

Japan

A10

China

A11

India

A12

Brazil

E1

UK and Euro (FCA3000 and FCA3100 only)

Service Options

Option

Description

C3

Calibration Service 3 Years

C5

Calibration Service 5 Years

D1

Calibration Data Report

R5

Repair Service 5 Years

SILV200

Standard Warranty Extended to 5 Years (FCA3000, FCA3003, FCA3100, and FCA3103)

SILV400

Standard Warranty Extended to 5 Years (FCA3020 and FCA3120)

Recommended Accessories and Software

Accessory

Description

RMU2U

Rackmount Shelf Kit for 2 Units

HCTEK4321

Hard Carrying Case

ACD4000

Soft Carrying Case

174-4401-xx

USB Host to Device Cable, 3 ft.

012-0991-xx

GPIB Cable, Double Shielded

012-1256-xx

BNC Male to BNC Male, Cable Shielded, 9 ft., 50 Ω

012-0482-xx

BNC Male to BNC Male, Cable Shielded, 3 ft., 50 Ω

SIGEXPTE

National Instruments SignalExpress™ Tektronix Edition Interactive Measurement Software – Professional Version

TVA3000

TimeView™ Modulation Domain Analysis Software

Модель Максимальная частота Разрешение по времени Разрешение по частоте
FCA3000 300 МГц 100 пс 12 разрядов

Characteristics

Measuring Functions

All measurements are displayed with a large main parameter value and smaller auxiliary parameter values (with less resolution). Some measurements are only available as auxiliary parameters.

Frequency A, B, C

Characteristic

Description

Mode

Normal, Back-to-Back (FCA3100 Series)

Range

   Input A, B

0.001 Hz to 300 MHz

300-400 MHz in Manual Trigger mode

   Input C

100 MHz to 3 GHz or 300 MHz to 20 GHz

Resolution

12 digits in 1 s measuring time (normal)

11 digits in 1 s measuring time (back-to-back)

Aux Parameters

Vmax, Vmin, Vp-p

Frequency Burst A, B, C(FCA3020 and FCA3120 – 20 GHz Only)

Characteristic

Description

Frequency and PRF of repetitive burst signals can be measured without an external control signal and with selectable-start arming delay.

Functions

Frequency in burst (in Hz) PRF (in Hz)

Range

Input A, B, C: See Frequency spec.

Minimum Burst Duration

Down to 40 ns

Minimum Pulses in Burst

   Input A, B

3 (6 above 160 MHz)

   Input C

3 × prescaler factor

PRF Range

0.5 Hz to 1 MHz

Start Delay

10 ns to 2 s, 10 ns resolution

Aux Parameters

PRF

Period A, B, C

Characteristic

Description

Mode

Single, Average, Back-to-Back (FCA3100 Series)

Range

   Input A, B

3.3 ns to 1000 s (single, average)

4.0 µs to 1000 s (back-to-back)

   Input C

10 ns down to 50 ps

Resolution

100 ps (single); 12 digit/s avg. (FCA3000 Series)

50 ps (single); 12 digit/s avg. (FCA3100 Series)

Aux Parameters

Vmax, Vmin, Vp-p

Ratio A/B, B/A, C/A, C/B

Characteristic

Description

Range

(10–9) to 1011

Input Frequency

   Input A, B

0.1 Hz to 300 MHz

300-400 MHz in Manual Trigger mode

   Input C

3 or 20 GHz

Aux Parameters

Freq 1, Freq 2

Time Interval A to B, B to A, A to A, B to B

Characteristic

Description

Range

Normal calculation: 0 ns to +106 s

Smart calculation: –106 s to +106 s

Resolution

100 ps single (FCA3000 Series)

50 ps single (FCA3100 Series)

Min Pulse Width

1.6 ns

Smart Calculation

Smart Time Interval to determine sign (A before B or A after B)

Positive and Negative Pulse Width A, B

Characteristic

Description

Range

2.3 ns to 106 s

Min Pulse Width

2.3 ns

Aux Parameters

Vmax, Vmin, Vp-p

Rise and Fall Time A, B

Characteristic

Description

Range

1.5 ns to 106 s

Trigger Levels

10% and 90% of signal amplitude

Min Pulse Width

1.6 ns

Aux Parameters

Slew rate, Vmax, Vmin

Time Interval Error (TIE) A, B

Normalized period back-to-back measurements, calculated as TIE(k) = k * TREF - ∑TI, when TI = Individual Period Back-to-Back and TREF = Reference Period Value.

Positive and Negative Duty Factor A, B

Characteristic

Description

Range

0.000001 to 0.999999

Frequency Range

0.1 Hz to 300 MHz

Aux Parameters

Period, pulse width

Phase A Relative B, B Relative A

Characteristic

Description

Range

–180° to +360°

Resolution

Single cycle: 0.001° to 10 kHz, decreasing to 1° >10 MHz. Resolution can be improved by averaging (statistics)

Frequency Range

Up to 160 MHz

Aux Parameters

Freq (A), Va/Vb (in dB)

Totalize A, B (FCA3100 Series)

Characteristic

Description

Mode

Tot A, Tot B, Tot A+B, Tot A–B, Tot A/B

Range

1 to 1010 counts

Frequency Range

Up to 160 MHz

Start Control

Manual, start arming

Stop Control

Manual, stop arming, timed

Aux Parameters

Other Totalize functions

Vmax, Vmin, Vp-p A, B

Characteristic

Description

Range

–50 V to +50 V, –5 V to +5 V

Range is limited by the specification for max input voltage without damage (see input A, B)

Frequency Range

DC, 1 Hz to 300 MHz

Mode

Vmax, Vmin, Vp-p

Resolution

3 mV (FCA3000 Series)

1 mV (FCA3100 Series)

Uncertainty (5 V range, typical)

   DC, 1 Hz to 1 kHz

1% + 15 mV

   1 kHz to 20 MHz

3% + 15 mV

   20 to 100 MHz

10% + 15 mV

   100 to 300 MHz

30% + 15 mV

Aux Parameters

Vmin, Vmax, Vp-p

Time Stamping A, B, C

Characteristic

Description

Raw time-stamp data together with pulse counts on inputs A, B, or C, accessible through GPIB or USB only.

Max Sample Speed

See GPIB specifications

Max Frequency

160 MHz

Time-stamp Resolution

100 ps (FCA3000 Series)

50 ps (FCA3100 Series)

Input and Output Specifications

Inputs A and B

Characteristic

Description

Frequency Range

DC Coupled: DC to 300 MHz

AC Coupled: 10 Hz to 300 MHz

300-400 MHz in Manual Trigger mode for both AC and DC

Impedance

1 MΩ / 20 pF or 50 Ω (VSWR ≤ 2:1)

Trigger Slope

Positive or negative

Max Channel Timing Difference

500 ps

Sensitivity

15 mVRMS (DC-200 MHz)

25 mVRMS (200-400 MHz)

Attenuation

X1, X10

Dynamic Range (X1)

30 mVp-p to 10 Vp-p within ±5 V window

Trigger Level

Readout on display

   Resolution

FCA3000 Series: 3 mV

FCA3100 Series: 1 mV

   Uncertainty (X1)

±(15 mV + 1% of trigger level)

   AUTO trigger level

Trigger level is automatically set to 50% point of input signal (10% and 90% for rise/fall time)

Auto Hysteresis

   Time

Min hysteresis window (hysteresis compensation)

   Frequency

One-third of input signal amplitude

   Frequency Range

1 Hz to 300 MHz

Analog LP Filter

Nominal 100 kHz, RC type

Digital LP Filter

1 Hz to 50 MHz cutoff frequency

Max Voltage without Damage

   1 MΩ

350 V (DC + AC peak) to 440 Hz, falling to 12 VRMS (X1) at 1 MHz

   50 Ω

12 VRMS (Unprotected Input)

Connector

BNC

Input C – 3 GHz (FCA3003 and FCA3103 Products)

Characteristic

Description

Operating Input Voltage Range

   100 to 300 MHz

20 mVRMS to 12 VRMS

   0.3 to 2.5 GHz

10 mVRMS to 12 VRMS

   2.5 to 2.7 GHz

20 mVRMS to 12 VRMS

   2.7 to 3.0 GHz

40 mVRMS to 12 VRMS

Prescaler Factor

16

Impedance

50 Ω nominal, VSWR < 2.5:1

Max Voltage without Damage

12 VRMS, pin-diode protected

Connector

Type-N Female

Input C – 20 GHz (FCA3020 and FCA3120 Products)

Characteristic

Description

Frequency Range

0.25 to 20 GHz

Operating Input Voltage Range

   250 to 500 MHz

–21 to +27 dBm

   0.5 to 14 GHz

–27 to +27 dBm

   14 to 18 GHz

–27 to +27 dBm

   18 to 20 GHz

–21 to +27 dBm

Prescaler Factor

128

Impedance

50 Ω nominal, VSWR < 2.0:1

AM Tolerance

>90% within sensitivity range

Max Voltage without Damage

+27 dBm

Connector

Type Precision-N Female

Rear Panel Inputs and Outputs

Characteristic

Description

Reference Input

1, 5, or 10 MHz; 0.1 to 5 VRMS sine; impedance ≥1 kΩ

Reference Output

10 MHz; >1 VRMS sine into 50 Ω

Arming Input

Arming of all measuring functions

   Impedance

Approx. 1 kΩ

   Frequency range

DC to 80 MHz

Pulse Output

(FCA3100 Series)

Programmable through front GPIB/USB

   Mode

Pulse Out, Gate Open, Alarm Out

   Period

20 ns - 2 s, in 10 ns increments

   Pulse width

10 ns - 2 s, in 10 ns increments

   Output

TTL levels in 50 Ω, rise time 2 ns

Rear-panel Measurement Inputs

A, B, C (Option RP only)

   Impedance

1 MΩ / 50 pF or 50 Ω (VSWR ≤ 2:1)

   Connectors

SMA female for rear input C

BNC for all other inputs/outputs

Auxiliary Functions

Trigger Holdoff

Characteristic

Description

Time Delay Range

20 ns to 2 s, 10 ns resolution

External Start and Stop Arming

Characteristic

Description

Modes

Start, Stop, Start and Stop Arming

Input Channels

A, B, or (rear panel) E

Max Rep. Rate for Arming Signal

   Channel A, B

160 MHz

   Channel E

80 MHz

Start-time Delay Range

20 ns to 2 s, 10 ns resolution

Statistics

Characteristic

Description

Functions

Maximum, Minimum, Mean, ΔMax-Min, Standard Deviation, and Allan Deviation

Display

Numeric, histograms, or trend plots

Sample Size

2 to 2 × 109 samples

Limit Qualifier

Off, or capture values above, below, inside, or outside limits

Measurement Pacing

Pacing Time Range: 4 µs to 500 s

Mathematics

Characteristic

Description

Functions

(K*X+L)/M and (K/X+L)/M. X is current reading and K, L, and M are constants; set using the keyboard or as frozen reference value (X0)

Other Functions

Characteristic

Description

Measuring Time

20 ns to 1000 s for frequency, burst, and period average. Single cycle for other measuring functions

Time-base Reference

Internal, external, or automatic

Display Hold

Freezes the result, until a new measurement is initiated through a restart

Limit Alarm

Graphical indication on front panel and/or SRQ through GPIB, plus pulse output connector (FCA3100 Series)

Limit Values

Lower limit, upper limit

Settings

Off, or alarm if value is above, below, inside, or outside limits

On Alarm

Stop or Continue

Display

Numeric + Graphic

Stored Instrument Setups

20. Instrument setups can be saved/recalled from internal nonvolatile memory. 10 can be user protected

Display

Backlit LCD graphics screen for menu control, numerical readout, and status information

   Number of digits

14 digits in Numerical mode

   Resolution

320 × 97 pixels

GPIB Interface

Characteristic

Description

Compatibility

IEEE 488.2-1987, SCPI 199953131A Compatibility mode

Interface Functions

SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2

Max Measurement Rate

   GPIB

15k/5k readings/s (Block mode)

4k/- readings/s (Talker Only mode)

650/500 readings/s (individual GET triggered)

   To internal memory

250k readings/s

Internal Memory Size

750k readings (FCA3000 Series)

3.75M readings (FCA3100 Series)

USB Interface

Characteristic

Description

USB Version

2.0 full speed (11 Mb/s)

Calibration

Characteristic

Description

Mode

Closed case, menu controlled

Calibration Frequencies

0.1, 1, 5, 10, 1.544, and 2.048 MHz

General Specifications

Environmental Data

Characteristic

Description

Class

MIL-PRF-28800F, Class 3

Operating Temp

0 °C to +50 °C

Storage Temp

–40 °C to +71 °C

Humidity

5-95% (10-30 °C)

5-75% (30-40 °C)

5-45% (40-50 °C)

Altitude

Operating: 2,000 m

Storage: 12,000 m

Safety

Directive 2006/95/EC, EN61010-1, UL61010-1, CAN/CSA C22.2 No. 61010-1

EMC

EU Directive 2004/108/EC, EN61326-1, EN61326-2-1, Class A

Power Requirements

Characteristic

Description

Basic Version

90 to 265 VRMS, 45 to 440 Hz, <40 W

Time-base Options

Characteristic

Standard

Medium Stability (MS)

High Stability (HS)

Time-base Type

TCXO

OCXO

OCXO

Uncertainty Due to –

   Aging

      Per 24h

NA

<5×10–9*1

<5×10–10*1

      Per month

<5×10–7

<6×10–8

<1×10–8

      Per year

<5×10–6

<2×10–7

<5×10–8

   Temperature variation (typ. values)

      0-50 °C

<1×10–5

<5×10–8

<5×10–9

      20-26 °C

<3×10–6

<2×10–8

<1×10–9

Short-term Stability: t = 1 s

Not specified

<1×10–10

<1×10–11

Root Allan Variance: t = 10 s

Not specified

<1×10–10

<1×10–11

Power-on Stability

NA

<1×10–7

<1×10–8

   Deviation versus final value after 24h ON time, after a warm-up time of:

30 min

30 min

10 min

Total Uncertainty, for Operating Temperature 20 °C to 26 °C, at 2σ (95%) Confidence Interval

   1 year after calibration

<7×10–6

<2.4×10–7

<0.6×10–7

   2 years after calibration

<1.2×10–5

<4.6×10–7

<1.2×10–7

*1 After 1 month of continuous operation.

Physical

Dimension

mm

in.

Height

90

3.6

Width

210

8.25

Depth

395

15.6

Weight

kg

lb.

Net

2.7

5.8

Shipping

3.5

7.5

Связанные приборы
