Features & Benefits
- 68/102/136 Channel Logic Analyzers with up to 512 Mb Record Length
- MagniVu™ Acquisition Technology provides up to 20 ps (50 GHz) Timing Resolution to Find and Measure Elusive Timing Problems Quickly
- Up to 156 ps (6.4 GHz)/512 Mb Record Length Timing Analysis
- Up to 1.4 GHz Clock with up to 3.0 Gb/s Data with a Data Valid Window of 180 ps for State Acquisition Analysis of High-performance Synchronous Buses
- Glitch and Setup/Hold Triggering and Display Finds and Displays Elusive Hardware Problems
- Transitional Storage Extends the Signal Analysis Capture Time for Signals that Transition Infrequently
- Simultaneous State, High-speed Timing, and Analog Analysis through the Same Probe Pinpoints Elusive Faults
- Compression Probing System with 0.5 pF Capacitive Loading Eliminates Need for Onboard Connectors, Minimizes Intrusion on Circuits, and is Ideal for Differential Signal Applications
- Trace Problems from Symptom back to Root Cause in Real Time across Multiple Modules by Viewing Time-correlated Data in a Wide Variety of Display Formats
- PCI Express Gen1 through Gen3 including Gen3 Protocol to Physical Layer Analysis for Link Widths from x1 through x16 with up to 8.0 GT/s Acquisition Rates and up to 16 GB Deep Memory (for x16 Link)
- Comprehensive PCI Express Probing Solutions, including Midbus, Slot Interposer, and Solder-down Connectors
- Modular Mainframes provide Flexibility and Expandability
- Supports up to 6,528 Logic Analyzer Channels, 48 Independent Buses
- Broad Processor and Bus Support
Applications
- FPGA Debug and Verification
- MIPI Protocol Analysis
- DDR2 and DDR3 Debug and Verification
- Signal Integrity
- PCI Express Debug from Protocol Layer to Physical Layer
- Silicon Validation
- Computer System Validation
- Embedded System Debug and Validation
- Processor/Bus Debug and Verification
- Embedded Software Integration, Debug, and Verification
Breakthrough Solutions for Real-time Digital Systems Analysis
Tektronix provides breakthrough digital systems analysis tools that enable digital hardware and software designers to capture and analyze the source of elusive problems that threaten product development schedules. The TLA7000 Series provides the speed you need to capture the source of those elusive problems, plus the visibility you want with large displays and fast system data throughput, while protecting your investment with compatibility with all TLA modules.

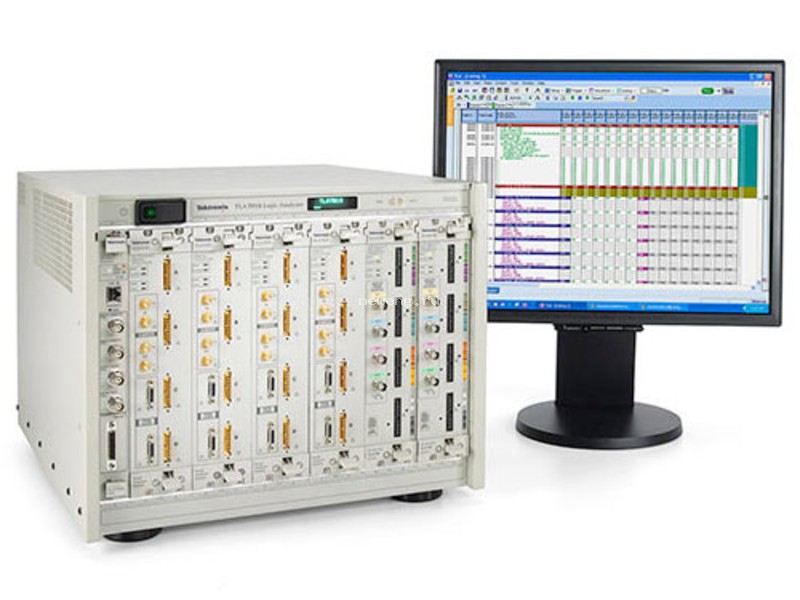

TLA7012 and TLA7016 Mainframes
The TLA7012 Portable and TLA7016 Benchtop mainframes are modular mainframes that accept TLA logic analyzer and pattern generator modules. The TLA7012 and TLA7016 can be configured as either master or expansion mainframes to provide solutions for large numbers of buses and high channel-count requirements.
The TLA7012 Portable Mainframe and TLA7016 Benchtop Mainframe along with the TLAPC1 Benchtop Controller are built on a Microsoft Windows XP Professional PC platform that offers a familiar work environment for the TLA application software. They provide multiple display capability for extended desktop viewing, in addition to an internal DVD-RW, hard drive, and multiple USB 2.0 ports for expansion. A replaceable hard drive is standard on both mainframes, ideal for security or enabling individual team members to store personal setups and data. Trigger in/out connections provide an interface to other external instrumentation, such as DPO oscilloscopes, for correlating measurement results.

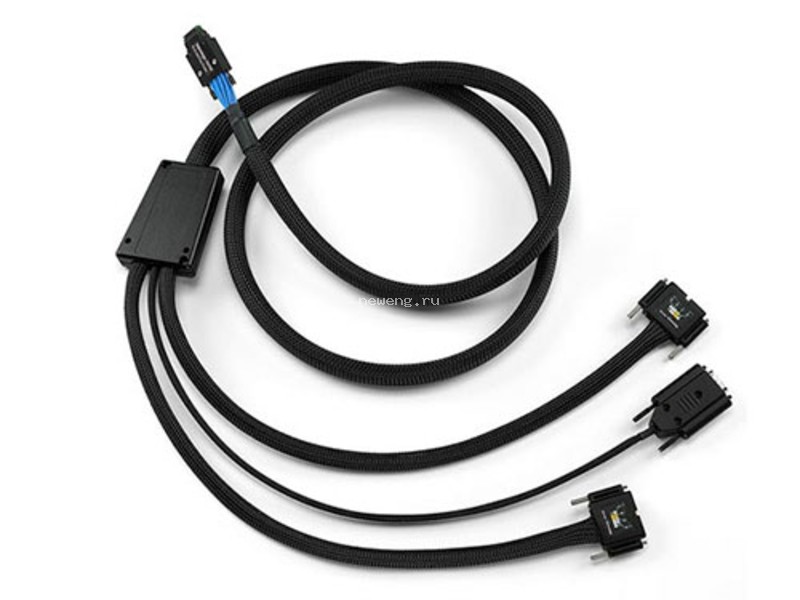

P6800 and P6900 Series Probes
No test and measurement solution is complete without probing. With the industry’s lowest capacitance, the P6800 and P6900 Series logic analyzer probes protect the integrity of your signal – critical for connecting to fast buses like DDR2 and DDR3 where low intrusion is key to the proper operation of your design. Select from single-ended and differential probes and a variety of attachment mechanisms, including the “connectorless” compression connection that eliminates the need for onboard connectors.
For applications where circuit board space is at a premium, the high-density P6900 Series with D-Max® Probing Technology offers the industry’s smallest available footprint. For debugging the signal integrity glitches common on fast buses, the P6900 Series works with the TLA7BBx and TLA7ACx modules and their iLink™ Tool Set capability to provide iCapture™ simultaneous digital-analog acquisition. This allows you to clearly see the time-correlated digital and analog behavior of your design, without the extra capacitance and setup time of double-probing.
For differential signaling applications where signal integrity is critical, the high-fidelity P6980 and P6982 are perfect for those applications where noise performance is critical. In addition, the P6980 and P6982 can support the small voltage swings that differential signaling often requires. The P6962DBL, when used with a TLA7000 Series logic analyzer with the TLA7BBx module, supports digital validation and debug of DDR3 memory with data rates up to 1600 mega-transfers per second. For board designs that do not include high-density probe footprints, the P6960 with its companion flying leadset provides the flexibility required to meet many different debug needs.
P6700 Series Probes for PCI Express
The P6700 Series probes provide validation engineers with a comprehensive set of PCI Express probing solutions, including midbus, slot interposer, and solder-down connectors. With support for PCI Express Gen3 channel lengths up to 24 in. with 2 connectors, these probes offer minimal electrical loading with the highest signal fidelity and active equalization to ensure accurate data recovery of closed eyes. All P6700 Series probes feature a graphical lane swizzling capability for maximum flexibility to accommodate unique circuit board layouts.

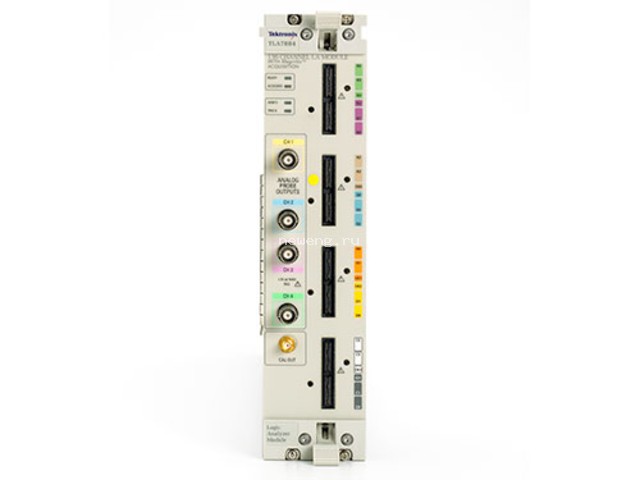

TLA7ACx and TLA7BBx Modules
Today’s digital design engineers face daily pressures to speed new products to the marketplace. The TLA7ACx and TLA7BBx Series logic analyzer modules answer the need with breakthrough solutions for the entire design team, providing the ability to quickly monitor, capture, and analyze real-time digital system operation in order to debug, verify, optimize, and validate digital systems. Hardware developers, hardware/software integrators, and embedded software developers will appreciate the range of capabilities of the TLA7ACx and TLA7BBx Series logic analyzer modules. Its broad feature set includes capturing and correlating elusive hardware and software faults; providing simultaneous state, high-speed timing, and analog analysis through the same probe; using deep state acquisition to find the cause of complex problems; real-time, nonintrusive software execution tracing that correlates to source code and to hardware events; and nonintrusive connectorless probing.
The TLA7BBx Series logic analyzer modules offer breakthrough MagniVu™ technology by Tektronix for providing high-speed sampling (up to 50 GHz) that dramatically changes the way logic analyzers work and enables them to provide startling new measurement capabilities. The TLA7BBx modules offer high-speed state synchronous capture, high-speed timing capture, and analog capture through the same set of probes. They capitalize on MagniVu technology to offer up to 20 ps timing on all channels, glitch and setup/hold triggering, and display and time stamp that is always on at up to 20 ps resolution.
To compliment the high-performance logic analyzer modules, the TLA7ACx Series logic analyzer modules offer all the same debug and verification functionality, but with performance levels more suited to the embedded designer. The TLA7ACx modules offer high-speed state synchronous capture, high-speed timing capture, and analog capture through the same set of probes. MagniVu technology offering up to 125 ps timing on all channels, glitch and setup/hold triggering, and display and time stamp that is always on at 125 ps resolution is available as standard on all models.
Module |
Timing Resolution |
State Speed |
Memory |
TLA7ACx |
125 ps (8 GHz) |
Up to 800 MHz |
Up to 128 Mb |
TLA7BBx |
20 ps (50 GHz) |
Up to 1.4 GHz |
Up to 64 Mb |
TLA7SAxx PCI Express Logic Protocol Analyzer Modules
PCI Express 3.0 introduces new challenges for validation engineers. Time-to-market pressures require a solution that can quickly pinpoint problems. The TLA7SAxx Series logic protocol analyzer modules provide an innovative approach to PCI Express validation that spans all layers of the protocol from the physical layer to the transaction layer.
Reduce your time to information by viewing and searching up to 16 GB deep memory in just seconds with rapid display updates enabled by our industry-leading hardware acceleration. With improved information density you can then quickly ascertain the health of the system and identify patterns of interest (errors, specific transactions, ordered sets, etc.) with statistics using the Summary Profile window. Protocol behavior can be viewed at the packet and transaction level interspersed with physical layer activity in a single innovative Transaction window. Further insight into physical layer details can be gained with the unique Listing window showing packet details at the symbol level by lane and you can view individual lane activity correlated with analog waveforms from your high-bandwidth oscilloscope in the Waveform window.
Hardware developers, hardware/software integrators, and embedded system designers will appreciate the tight integration with the Tektronix Logic Analyzer. This provides visibility of complete system interactions with time-correlated, multibus analysis on a single display. Cross triggering and a common global time stamp enables accurate and efficient debugging by showing exactly what was happening on one bus relative to another at any given instant of time. Coupled with the P6700 Series probing solutions, engineers have flexible options for platform accessibility.
Ordering Information
TLA7012
Portable Logic Analyzer Mainframe, holds two TLA modules.
Includes: Mini Keyboard (119-7275-xx), Optical Wheel Mouse (119-7054-xx), Front-panel cover (200-4939-xx), One dual-wide panel filler for empty slots (333-4206-xx), TLA Application Software CD (063-3881-xx), Certificate of Traceable Calibration.
Note: Please specify power cord, language, and service options when ordering.
TLA7012 Options
Option |
Description |
Order Number |
Opt. 18 |
Add touch screen |
N/A |
Opt. 1C |
Add GPIB-iView™ external oscilloscope interface kit (requires TLA Application SW V5.0 or greater) |
012-1614-xx |
Opt. 2C |
Add USB-iView external oscilloscope interface kit (requires TLA Application SW V5.8 or greater) |
|
Opt. PO |
Add Accessory Pouch for TLA7012 |
016-1441-xx |
Opt. TL |
Add Teklink Cable |
174-5019-xx |
Opt. 1K |
Add LACART logic analyzer cart |
LACART |
Opt. 88 |
Factory install of module |
N/A |
TLA7012 Optional Accessories
Order Number |
Accessory |
650-4815-xx |
Additional Removable Hard Drive Assembly (no SW) |
020-2664-xx |
Rackmount Kit |
016-1522-xx |
Wheeled Transport Case |
TLA7016
Benchtop Logic Analyzer Mainframe, holds six TLA modules.
Includes: Five (5) dual-wide panel fillers for empty slots (333-4206-xx), LAN cable, straight-through, RJ-45 (174-5225-xx), TLA Application Software CD (063-3881-xx), Certificate of Traceable Calibration.
Note: Please specify power cord, language, and service options when ordering.
TLA7016 Options
Option |
Description |
Order Number |
Opt. 1C |
Add GPIB-iView™ external oscilloscope interface kit (requires TLA Application SW V5.0 or greater) |
012-1614-xx |
Opt. 2C |
Add USB-iView external oscilloscope interface kit (requires TLA Application SW V5.8 or greater) |
N/A |
Opt. TL |
Add Teklink Cable |
174-5019-xx |
Opt. BTB |
Add Benchtop System Mounting Brackets |
407-5127-xx (Left) 407-5132-xx (Right) |
Opt. 1K |
Add K4000 logic analyzer cart |
K4000 |
Opt. 88 |
Factory install of module |
N/A |
TLA7016 Optional Accessories
Order Number |
Accessory |
020-2369-xx |
Rackmount Kit |
016-1651-xx |
Wheeled Transport Case |
TL708EX
TekLink™ 8-port Instrument Hub and Expander (Used for connecting 3-to-8 TLA7012 or TLA7016 mainframes).
Includes: Instruction sheet (071-1765-xx, English only).
Note: Please specify power cord and service options when ordering.
TLA7000 Series Power Cord Options
Option |
Description |
Opt. A0 |
North America power |
Opt. A1 |
Universal Euro power |
Opt. A2 |
United Kingdom power |
Opt. A3 |
Australia power |
Opt. A4 |
240 V, North America power |
Opt. A5 |
Switzerland power |
Opt. A6 |
Japan power |
Opt. A10 |
China power |
Opt. A11 |
India power |
Opt. A12 |
Brazil power |
Opt. A99 |
No power cord or AC adapter |
TLA7000 Series Language Options
Option |
Description |
Opt. L0 |
English Manual |
Opt. L5 |
Japanese Manual |
Opt. L10 |
Russian Manual |
Opt. L99 |
No Manual |
TLA7000 Series Installation Service
Option |
Description |
LAINSTAL-SM |
Installation of single mainframe and up to 3 modules or 1 to 3 modules in existing mainframe |
LAINSTAL-LG |
Installation of single mainframe and 4 to 6 modules |
Gigabit LAN (GbE) Switch
Order Number |
Description |
020-2666-xx |
16-port Gigabit LAN (GbE) Switch with U.S. Standard (120 V, 60 Hz) Power Cord |
Power Cords for Gigabit LAN (GbE) Switch
Order Number |
Description |
161-0066-00 |
Power Cord, IEC320 C13, North American, Straight |
161-0066-09 |
Power Cord, IEC320 C13, Universal Euro, Straight |
161-0066-10 |
Power Cord, IEC320 C13, Universal Euro, Straight |
161-0066-11 |
Power Cord, IEC320 C13, Australian, Straight |
161-0066-12 |
Power Cord, IEC320 C13, North American, Straight |
161-0154-00 |
Power Cord, IEC320 C13, Switzerland, Straight |
161-0298-00 |
Power Cord, IEC320 C13, Japan, Straight |
161-0304-00 |
Power Cord, IEC320 C13, China, Straight |
TLA7ACx Modules
Includes: Certificate of calibration, and one-year warranty (return to Tektronix).
Note: Probes must be ordered separately.
TLA7ACx Logic Analyzer Modules
Module |
Description |
TLA7AC2 |
68-channel Logic Analyzer module, 8 GHz timing, 235 MHz state, 2 Mb record length. Options for up to 128 Mb record length and/or up to 450 MHz state |
TLA7AC3 |
102-channel Logic Analyzer module, 8 GHz timing, 235 MHz state, 2 Mb record length. Options for up to 128 Mb record length and/or up to 450 MHz state |
TLA7AC4 |
136-channel Logic Analyzer module, 8 GHz timing, 235 MHz state, 2 Mb record length. Options for up to 128 Mb record length and/or up to 450 MHz state |
TLA7ACx Module Options
Option |
Description |
Base configuration is 2 Mb record length at 235 MHz state with basic Analog Multiplexer capability. |
|
Opt. 1S |
Increase to 8 Mb Record Length at 235 MHz State |
Opt. 2S |
Increase to 32 Mb Record Length at 235 MHz State |
Opt. 3S |
Increase to 128 Mb Record Length at 235 MHz State |
Opt. 4S |
Increase to 2 Mb Record Length at 450 MHz State |
Opt. 5S |
Increase to 8 Mb Record Length at 450 MHz State |
Opt. 6S |
Increase to 32 Mb Record Length at 450 MHz State |
Opt. 7S |
Increase to 128 Mb Record Length at 450 MHz State |
Opt. AM |
Enable Full Analog Multiplexer |
Opt. 88 |
Factory Install |
TLA7ACx Language Options
Option |
Description |
Opt. LG1 |
Global Manual |
Opt. L99 |
No Manual |
Please refer to the Service section at the rear of this document for details about Calibration and Repair options.
TLA7BBx Modules
Includes: Certificate of calibration, and one-year warranty (return to Tektronix).
Note: Probes must be ordered separately.
TLA7BBx Logic Analyzer Modules
Module |
Description |
TLA7BB2 |
68-channel Logic Analyzer module, 50 GHz MagniVu timing, 750 MHz state clock, 2 Mb record length. Options for up to 64 Mb record length and/or up to 1.4 GHz state clock |
TLA7BB3 |
102-channel Logic Analyzer module, 50 GHz MagniVu timing, 750 MHz state clock, 2 Mb record length. Options for up to 64 Mb record length and/or up to 1.4 GHz state clock |
TLA7BB4 |
136-channel Logic Analyzer module, 50 GHz MagniVu timing, 750 MHz state clock, 2 Mb record length. Options for up to 64 Mb record length and/or up to 1.4 GHz state clock |
TLA7BBx Module Options
Option |
Description |
Base configuration is 2 Mb record length at 750 MHz state clock with full Analog Multiplexer capability. |
|
Opt. 1S |
Increase to 4 Mb Record Length at 750 MHz State Clock |
Opt. 2S |
Increase to 8 Mb Record Length at 750 MHz State Clock |
Opt. 3S |
Increase to 16 Mb Record Length at 750 MHz State Clock |
Opt. 4S |
Increase to 32 Mb Record Length at 750 MHz State Clock |
Opt. 5S |
Increase to 64 Mb Record Length at 750 MHz State Clock |
Opt. 6S |
Increase to 2 Mb Record Length at 1.4 GHz State Clock |
Opt. 7S |
Increase to 4 Mb Record Length at 1.4 GHz State Clock |
Opt. 8S |
Increase to 8 Mb Record Length at 1.4 GHz State Clock |
Opt. 9S |
Increase to 16 Mb Record Length at 1.4 GHz State Clock |
Opt. AS |
Increase to 32 Mb Record Length at 1.4 GHz State Clock |
Opt. BS |
Increase to 64 Mb Record Length at 1.4 GHz State Clock |
Opt. 88 |
Factory Install |
TLA Series Module Upgrades
Please refer to the Service section at the rear of this document for details about Calibration and Repair options.
TLA7BBx Customer Deskew Fixture
Option |
Description |
020-2942-00 |
TLA7BBx Customer Deskew Fixture for P6800 Series Probes |
020-2940-00 |
TLA7BBx Customer Deskew Fixture for P6900 Series Probes |
TLA7BBx Language Options
Option |
Description |
Opt. L0 |
English Manual |
Opt. L5 |
Japanese Manual |
Opt. L10 |
Russian Manual |
Opt. L99 |
No Manual |
TLA7SAxx PCI Express Logic Protocol Analyzer Modules
Module |
Description |
Includes: Statement of Compliance, one-year warranty (return to Tektronix), reference clock cable (672-6285-xx), and reference clock jumper cable (174-5392-xx). Note: Probes, mainframes, and software must be ordered separately. |
|
TLA7SA16 |
16 Differential Inputs, x8 Logic Protocol Analyzer module, 8 GT/s acquisition, 8 GB physical memory |
TLA7SA08 |
8 Differential Inputs, x4 Logic Protocol Analyzer module, 8 GT/s acquisition, 4 GB physical memory |
TLA7SAxx PCI Express Software
Software |
Description |
TMS160PCIE3 |
TLA protocol software for PCIe 3.0 |
Logic Analyzer TLA7SAxx Module Options
Option |
Description |
Opt. 88 |
Factory Install |
Opt. L0 |
English Manual |
Opt. L5 |
Japanese Manual |
Opt. L10 |
Russian Manual |
Opt. L99 |
No Manual |
Service Options
Option |
TLA7000 Mainframes |
TL7ACx Modules |
TLA7BBx Modules |
TLA7SAxx Modules |
The following service options are offered for the TLA logic analyzer products. |
||||
Opt. C3 Calibration Service 3 Years |
X |
X |
X |
X |
Opt. C5 Calibration Service 5 Years |
X |
X |
X |
X |
Opt. D1 Calibration Data Report |
X |
X |
X |
|
Opt. D3 Calibration Data Report 3 Years (with Opt. C3) |
X |
X |
X |
|
Opt. D5 Calibration Data Report 5 Years (with Opt. C5) |
X |
X |
X |
|
Opt. G3 Complete Care 3 Years (includes loaner, scheduled calibration and more). TLA7012, TLA7BB2, TLA7BB3, TLA7BB4, TLA7S08, TLA7S16 only |
|
|
X |
X |
Opt. G5 Complete Care 5 Years (includes loaner, scheduled calibration and more). TLA7012, TLA7BB2, TLA7BB3, TLA7BB4, TLA7S08, TLA7S16 only |
|
|
X |
X |
Opt. R3 Repair Service 3 Years |
X |
X |
X |
X |
Opt. R5 Repair Service 5 Years |
X |
X |
X |
X |
Opt. S1 On-site Service 1 Year |
X |
|
|
|
Opt. S3 On-site Service 3 Years (with R or C options) |
X |
|
|
|
Opt. R3DW Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase |
X |
X |
X |
X |
Opt. R5DW Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase |
X |
X |
X |
X |
TLA7000 Series Upgrades
You can add new capabilities to your existing TLA mainframe or increase the state speed, memory depth, or add full analog multiplexer capability (TLA7ACx only) to existing TLA modules by ordering the appropriate upgrade kit. Please refer to the TLA Family Upgrade Guide for further details.
Модель | Число каналов | Макс. тактовая частота по состояниям | Синхронизация | Разрешение |
TLA7012 | 272 | Зависит от установленных модулей (2 гнезда для модулей) | Зависит от установленных модулей (2 гнезда для модулей) | Зависит от установленных модулей (2 гнезда для модулей) |
TLA7012 and TLA7016 Characteristics
General
Characteristic |
Description |
Instrument Slots |
TLA7012: Holds 2 TLA modules TLA7016: Holds 6 TLA modules |
Expansion Capability |
The TLA7000 Series mainframes can be used as either master or expansion mainframes (TL708EX 8-port Instrument Hub and Expander is required for 3-8 mainframes connected together using TekLink™ cable) TLA7012: Up to eight TLA7012 mainframes can be used, providing support for up to 16 TLA modules (2,176 channels) TLA7016: Up to eight TLA7016 mainframes can be used, providing support for up to 48 TLA modules (6,528 channels) |
TLA7012 PC Characteristics
Characteristic |
Description |
Operating System |
Microsoft® Windows® XP Professional and Multilingual User Interface Pack |
Processor |
2 GHz Intel® Pentium® M-760 |
Chipset |
Intel® 915GM |
Memory |
1 GB DDR PC 533 MHz (SODIMM), expandable to 2 GB DDR memory |
Sound |
Line In and Mic Out connectors |
Removable Hard Drive |
3.5 in., ≥80 GB Serial ATA, 7200 RPM |
Optical Drive |
Internal 4.7 GB DVD±R/RW |
External Display Port Type |
One (1) DVI-D (primary – digital only) and one (1) DVI-I (secondary – digital and analog) connectors |
External Display Resolution |
Up to 1600×1200 noninterlaced at 32-bit color, each for both primary and secondary displays |
Network Port |
One (1) 10/100/1000 LAN with RJ-45 connector |
USB 2.0 Port |
Seven (7); three (3) in front and four (4) in rear |
TLA7012 Integral Controls
Characteristic |
Description |
Front-panel Display |
Size: 15 in. (38.1 cm) diagonal Type: Active-matrix color TFT LCD with backlight Resolution: 1024×768 |
Simultaneous Display Capability |
Both the front-panel and one external display can be used simultaneously at 1024×768 resolution |
Front Panel |
General-purpose knob with dedicated hotkeys and knobs for horizontal and vertical scaling and scrolling |
Touch Screen |
Available with Option 18 |
Integrated View (iView™) Capability
Characteristic |
Description |
TLA Mainframe Configuration Requirements |
GPIB-iView (Opt. 1C) requires TLA Application Software V5.0 or greater
USB-iView (Opt. 2C) requires TLA Application Software V5.8 or greater |
Number of Tektronix Oscilloscopes that can be Connected to a TLA System |
1 |
External Oscilloscopes Supported |
More than 100. |
TLA Connections |
USB, Trigger In, Trigger Out, Clock Out |
Oscilloscope Connections |
|
GPIB-iView (Opt. 1C) |
GPIB, Trigger In, Trigger Out, Clock In (when available) |
USB-iView (Opt. 2C) |
USB Device Port, Trigger In, Trigger Out |
Setup |
iView™ external oscilloscope wizard automates setup |
Data Correlation |
After oscilloscope acquisition is complete, the data is automatically transferred to the TLA and time correlated with the TLA acquisition data |
Deskew |
The oscilloscope and TLA data is automatically deskewed and time correlated when using the iView™ external oscilloscope cable |
GPIB-iView™ (Opt. 2C) External Oscilloscope Cable Length |
2 m (6.6 ft.) |
USB-iView (Opt. 2C) External Oscilloscope Cable Length |
1.8 m (6 ft.) |
Symbolic Support
Characteristic |
Description |
Number of Symbols/Ranges |
Unlimited (limited only by amount of virtual memory available on TLA) |
Object File Formats Supported |
IEEE695, OMF 51, OMF 86, OMF 166, OMF 286, OMF 386, COFF, Elf/Dwarf 1 and 2, Elf/Stabs, TSF (If your software development tools do not generate output in one of the above formats, TSF, or the Tektronix symbol file, a generic ASCII file format is supported. The generic ASCII file format is documented in the TLA User Manual). If a format is not listed, please contact your local Tektronix representative |
TLA7012 and TLA7016 External Instrumentation Interfaces
Characteristic |
Description |
System Trigger Output |
Asserted whenever a system trigger occurs (TTL-compatible output, back-terminated into 50 Ω) |
System Trigger Input |
Forces a system trigger (triggers all modules) when asserted (adjustable threshold between 0.5 V and 1.5 V, edge-sensitive, falling-edge latched) |
External Signal Output |
Can be used to drive external circuitry from a module's trigger mechanism (TTL-compatible output, back-terminated into 50 Ω) |
External Signal Input |
Can be used to provide an external signal to arm or trigger any or all modules (adjustable threshold between 0.5 V and 1.5 V, level sensitive) |
Power
Product |
Characteristics |
TLA7012 |
Voltage Range/Frequency: 90-250 V AC at 45-66 Hz 100-132 V AC at 360-440 Hz Input Current: 7 A maximum at 90 V AC (70 A surge) Power Consumption: 750 W maximum |
TLA7016 |
Voltage Range/Frequency: 90-250 V AC at 45-66 Hz, 100-132 V AC at 360-440 Hz Input Current: 16.5 A maximum at 90 V AC (70 A surge) Power Consumption: 1,450 W maximum |
TL708EX |
Voltage Range/Frequency: 100-240 V AC at 50-60 Hz Input Current: 2 A maximum at 100 V AC Power Consumption: 200 W maximum |
Environmental
Characteristic |
Description |
Temperature |
Operating: +5 °C to +45 °C Nonoperating: –20 °C to +60 °C |
Humidity |
20% to 80% Operating: ≤30 °C; 80% relative humidity (29 °C maximum wet-bulb temperature) Nonoperating: 8% to 80% (29 °C maximum wet-bulb temperature) |
Altitude |
Operating: –1,000 ft. to 10,000 ft. (–305 meters to 3,050 meters) |
Safety |
UL3111-1, CSA1010.1, EN61010-1, IEC61010-1 |
Physical Characteristics
TLA7012 Portable |
||
Dimensions |
mm |
in. |
Height |
295 |
11.6 |
Width |
451 |
17.75 |
Depth |
460 |
18.1 |
Weight |
kg |
lb. |
Net (w/o modules) |
14 |
30 |
Shipping (Typical) |
27 |
59 |
TLA7016 Benchtop |
||
Dimensions |
mm |
in. |
Height |
350 |
13.7 |
Width |
425 |
16.7 |
Depth |
673 |
26.5 |
Weight |
kg |
lb. |
Net (w/o modules) |
25 |
55 |
Shipping (Typical) |
51.8 |
115 |
TL708EX 8-port Instrument Hub and Expander |
||
Dimensions |
mm |
in. |
Height |
51 |
2 |
Width |
445 |
17.5 |
Depth |
305 |
12 |
Weight |
kg |
lb. |
Net |
3 |
6 |
Shipping |
5 |
11 |
TLA7ACx Characteristics
General
Characteristic |
Description |
Number of Channels (All channels are acquired including clocks) |
|
TLA7AC2 |
68 channels (4 are clock channels) |
TLA7AC3 |
102 channels (4 are clock and 2 are qualifier channels) |
TLA7AC4 |
136 channels (4 are clock and 4 are qualifier channels) |
Channel grouping |
No limit to number of groups or number of channels per group (all channels can be reused in multiple groups) |
Module "Merging” |
Up to five 102-channel or 136-channel modules can be "merged" to make up to a 680-channel module. Merged modules exhibit the same depth as the lesser of the five individual modules. Word/setup-and-hold/glitch/transition recognizers span all five modules. Range recognizers limited to three-module merge. Only one set of clock connections is required. |
Time Stamp |
51 bits at 125 ps resolution (3.25 days duration) |
Clocking/Acquisition Modes |
Asynchronous/Synchronous 8 GHz MagniVu high-speed timing is available simultaneous with all modes |
Number of Mainframe Instrument Slots Required per TLA Series Module |
1 |
Input Characteristics (with P6800 or P6900 Series probes)
Characteristic |
Description |
Capacitive Loading |
0.5 pF clock/data (P6900 Series) <0.7 pF clock/data (P6800 Series) (1.0 pF for P6810 in group configuration) |
Threshold Selection Range |
From –2.0 V to +4.5 V in 5 mV increments Threshold presets include TTL (1.5 V), CMOS (1.65 V), ECL (–1.3 V), PECL (3.7 V), LVPECL (2.0 V), LVCMOS 1.5 V (0.75 V), LVCMOS 1.8 V (0.9 V), LVCMOS 2.5 V (1.25 V), LVCMOS 3.3 V (1.65 V), LVDS (0 V), and user defined |
Threshold Selection Channel Granularity |
Separate selection for each of the clock/qualifier channels and one per group of 16 data channels for each 34-channel probe |
Threshold Accuracy (including probe) |
±(35 mV + 1%) |
Input Voltage Range |
|
Operating |
–2.5 V to 5.0 V |
Nondestructive |
±15 V |
Minimum Input Signal Swing |
300 mV (single ended) V¯MAX – VMIN > 150 mV (differential) |
Input Signal Minimum Slew Rate |
200 mV/ns typical |
State Acquisition Characteristics{C}{C}(with P6800 or P6900 Series probes)
Full Channel |
Half Channel |
Quarter Channel |
235 MHz |
450 MHz / 450 Mb/s or 470 Mb/s (DDR) |
450 MHz / 900 Mb/s |
450 MHz Optional |
800 MHz / 800 Mb/s or 900 Mb/s (DDR) |
625 MHz / 1.25 Gb/s |
Characteristic |
Description |
State Record Length with Time Stamps |
(Quarter/Half/Full channels) 8/4/2 Mb, 32/16/8 Mb, 128/64/32 Mb, 512/256/128 Mb per channel |
Setup-and-Hold Time Selection Range |
From 16 ns before, to 8 ns after clock edge in 125 ps increments. Range may be shifted towards the setup region by 0 ns [+8, –8] ns, 4 ns [+12, –4] ns, or 8 ns [+16, 0] ns |
Setup-and-Hold Window |
|
All channels |
625 ps typical |
Single channel |
500 ps typical |
Minimum Clock Pulse Width |
500 ps (P6960, P6964, P6980, P6982, P6860, P6864, P6880), 700 ps (P6810) |
Active Clock Edge Separation |
400 ps |
Demux Channel Selection |
Channels can be demultiplexed to other channels through user interface with 8-channel granularity |
Source Synchronous Clocking |
Up to four "Fast Latches" per module (20 max per 5-way merge) to strobe source-synchronous buses into TLA7ACx modules. Four sets of any predefined "Fast Latches" may be combined with qualification data and data pipelining to store four independent source-synchronous data buses. Two "Fast Latches" may be combined to address DDR applications. |
Timing Acquisition Characteristics{C}{C}(with P6800 or P6900 Series probes)
Characteristic |
Description |
MagniVu™ Timing |
125 ps max, adjustments to 250 ps, 500 ps, 1 ns, and 2 ns |
MagniVu Timing Record Length |
16 Kb per channel, with adjustable trigger position |
Deep Timing Resolution (Quarter/Half/Full channels) |
500 ps / 1 ns / 2 ns to 50 ms |
Deep Timing Resolution with Glitch Storage Enabled |
4 ns to 50 ms |
Deep Timing Record Length (Quarter/Half/Full channels with time stamps and with or without transitional storage) |
8/4/2 Mb, 32/16/8 Mb,128/64/32 Mb, 512/256/128 Mb per channel |
Deep Timing Record Length with Glitch Storage Enabled |
Half of default main memory depth |
Channel-to-Channel Skew |
300 ps typical |
Minimum Recognizable Pulse/Glitch Width (Single channel) |
500 ps (P6960, P6964, P6980, P6982, P6860, P6864, P6880), 750 ps (P6810) |
Minimum Detectable Setup/Hold Violation |
250 ps |
Minimum Recognizable Multichannel Trigger Event |
Sample period + channel-to-channel skew |
Analog Acquisition Characteristics{C}{C}(with P6800 or P6900 Series probes)
Characteristic |
Description |
Bandwidth |
2 GHz typical |
Attenuation |
10X, ±1% |
Offset and Gain (Accuracy) |
±50 mV, ±2% of signal amplitude |
Channels Demultiplexed |
4 |
Run/Stop Requirements |
None, analog outputs are always active |
iCapture™ Analog Outputs |
Compatible with any supported Tektronix oscilloscope |
iCapture Analog Output BNC Cable |
Low loss, 10X, 36 in. Basic Analog Multiplexer functionality is offered standard on all TLA7ACx modules. This routes 4 fixed channels to the iCapture Analog Output BNCs. The outputs cannot be switched to other logic analyzer channels. Option AM enables full analog multiplexer control and allows the routing of any 4 logic analyzer channels to the iCapture Analog Output BNCs |
Trigger Characteristics
Characteristic |
Description |
Independent Trigger States |
16 |
Maximum Independent If/Then Clauses per State |
16 |
Maximum Number of Events per If/Then Clause |
8 |
Maximum Number of Actions per If/Then Clause |
8 |
Maximum Number of Trigger Events |
18 (2 counters/timers plus any 16 other resources) |
Number of Word Recognizers |
16 |
Number of Transition Recognizers |
16 |
Number of Range Recognizers |
4 |
Number of Counters/Timers |
2 |
Trigger Event Types |
Word, Group, Channel, Transition, Range, Anything, Counter Value, Timer Value, Signal, Glitch, Setup-and-Hold Violation, Snapshot |
Trigger Action Types |
Trigger Module, Trigger All Modules, Trigger Main, Trigger MagniVu, Store, Don't Store, Store Sample, Increment Counter, Decrement Counter, Reset Counter, Start Timer, Stop Timer, Reset Timer, Snapshot Current Sample, Goto State, Set/Clear Signal, Do Nothing |
Maximum Triggerable Data Rate |
1250 Mb/s (4X clocking mode) |
Trigger Sequence Rate |
DC to 500 MHz (2 ns) |
Counter/Timer Range |
51 bits each (>50 days at 2 ns) |
Counter Rate |
DC to 500 MHz (2 ns) |
Timer Clock Rate |
500 MHz (2 ns) |
Counter/Timer Latency |
2 ns |
Range Recognizers |
Double bounded (408 channel max). Can be as wide as any group, must be grouped according to specified order of significance |
Setup-and-Hold Violation Recognizer Setup Time Range |
From 8 ns before to 7 ns after clock edge in 125 ps increments. This range may be shifted towards the positive region by 0 ns, 4 ns, or 8 ns |
Setup-and-Hold Violation Recognizer Hold Time Range |
From 7 ns before to 8 ns after clock edge in 125 ps increments. This range may be shifted towards the positive region by 0 ns [+8, –8] ns, 4 ns [+12, –4] ns, or 8 ns [+16, 0] ns |
Trigger Position |
Any data sample |
MagniVu Trigger Position |
MagniVu position can be set from 0% to 60% centered around the MagniVu trigger |
Storage Control (Data qualification) |
Global (conditional), by state (start/stop), block, by trigger action, or transitional. Also force main prefill selection available |
Physical Characteristics
Dimensions |
mm |
in. |
Weight |
kg |
lb. |
Height |
262 |
10.3 |
Width |
61 |
2.4 |
Depth |
381 |
15 |
Net |
3.1 |
6.7 |
Shipping |
6.3 |
13.7 |
TLA7BBx Characteristics
General
Characteristic |
Description |
Number of Channels (All channels are acquired including clocks) |
|
TLA7BB2 |
68 channels (4 are clock channels) |
TLA7BB3 |
102 channels (4 are clock, 2 are qualifier channels) |
TLA7BB4 |
136 channels (4 are clock, 4 are qualifier channels) |
Channel grouping |
No limit to number of groups or number of channels per group (all channels can be reused in multiple groups) |
Module "Merging" |
Up to five 68-channel, 102-channel, or 136-channel modules can be "merged" to make up to a 680-channel module. Merged modules exhibit the same depth as the lesser of the five individual modules. Word/setup-and-hold/glitch/transition recognizers span all five modules. Range recognizers limited to three module merge. Only one set of clock connections is required. |
Time Stamp |
54 bits at 20 ps resolution (>4 days duration) |
Clocking/Acquisition Modes |
Asynchronous and Synchronous. 20 ps (50 GHz) MagniVu, high-speed timing is available simultaneous with all modes |
Number of Mainframe Instrument Slots Required per TLA Series Module |
1 |
Input Characteristics (with P6800 or P6900 Series probes)
Characteristic |
Description |
Capacitive Loading |
0.5 pF clock/data (P6900 Series) |
<0.7 pF clock/data (P6800 Series); 1.0 pF for P6810 when 8-channel podlet grouper is used |
|
Threshold Selection Range |
From –2.0 V to +4.5 V in 5 mV increments Threshold presets include TTL (1.5 V), CMOS (2.5 V), ECL (–1.3 V), PECL (3.7 V), LVPECL (2.0 V), LVCMOS 1.5 V (0.75 V), LVCMOS 1.8 V (0.9 V), LVCMOS 2.5 V (1.25 V), LVCMOS 3.3 V (1.65 V), LVDS (0 V), and user defined |
Threshold Selection Channel Granularity |
Separate selection for each of the clock/qualifier and individual channels |
Threshold Accuracy (including probe) |
±(35 mV + 1%) |
Input Voltage Range |
|
Operating |
–2.5 V to 5.0 V |
Nondestructive |
±15 V |
Minimum Input Signal Swing |
200 mV (single ended) |
V MAX – V MIN > 100 mV (differential) |
|
Input Signal Minimum Slew Rate |
200 mV/ns typical |
State Acquisition Characteristics(with P6800 or P6900 Series probes)
Configuration |
Full Channel |
Half Channel |
750 MHz Standard |
750 MHz / 750 Mb/s (1 sample/clock) 750 MHz / 1.5 Gb/s (2 samples/clock) |
750 MHz / 3 Gb/s (4 samples/clock) |
1.4 GHz Optional |
1.4 GHz / 1.4 Gb/s (1 sample/clock) |
1.4 GHz / 2.8 Gb/s (2 samples/clock) |
Characteristic |
Description |
State Record Length with Time Stamps (Half/Full channels) |
4/2 Mb, 8/4 Mb, 16/8 Mb, 32/16 Mb, 64/32 Mb, 128/64 Mb per channel |
Setup-and-Hold Time Selection Range |
From 15 ns before, to 7.5 ns after clock edge in 20 ps increments. Range may be shifted towards the setup region by 0 ns [+7.5, –7.5] ns, 2.5 ns [+10, –5] ns, or 7.5 ns [+15, 0] ns |
Setup-and-Hold Window, Single Channel |
180 ps typical |
Minimum Clock Pulse Width |
200 ps (P6960, P6964, P6980, P6982, P6860, P6864, P6880), 250 ps (P6810) |
Demux Channel Selection |
Channels can be demultiplexed to other channels through user interface with 8-channel granularity |
Timing Acquisition Characteristics(with P6800 or P6900 Series probes)
Characteristic |
Description |
MagniVu™ Timing |
20 ps max, adjustments to 40 ps, 80 ps, 160 ps, 320 ps, and 640 ps |
MagniVu Timing Record Length |
128 Kb per channel, with adjustable trigger position |
Deep Timing Resolution (Quarter/Half/Full channels) |
156.25 ps / 312.5 ps / 625 ps to 50 ms |
Deep Timing Resolution with Glitch Storage Enabled |
1.25 ns to 50 ms |
Deep Timing Record Length (Quarter/Half/Full channels) |
8/4/2 Mb, 16/8/4 Mb, 32/16/8 Mb, 64/32/16 Mb, 128/64/32 Mb, 256/128/64 Mb per channel |
Deep Timing Record Length with Glitch Storage Enabled |
Half of default main memory depth |
Channel-to-Channel Skew (module + probes) |
|
Before customer deskew |
±80 ps typical |
After customer deskew (see AutoDeskew information below) |
±20 ps typical |
Minimum Recognizable Pulse/Glitch Width (Single channel) |
200 ps (P6960, P6964, P6980, P6982, P6860, P6864, P6880) 250 ps (P6810) |
Minimum Detectable Setup/Hold Violation |
40 ps |
Minimum Recognizable Multichannel Trigger Event |
Sample period + channel-to-channel skew |
AutoDeskew and Customer Deskew Fixture
Tektronix recommends AutoDeskew, a standard feature available within the TLA Application, for deskewing probe channels and setting the sample point for synchronous applications. However, for tight time alignment in both synchronous and asynchronous applications (including MagniVu), Tektronix recommends the Customer Deskew Fixture. This is an optional accessory to the TLA7BBx modules that is used to perform a “channel-to-channel deskew” of the probes connected to the TLA7BBx module to ensure tight time alignment between all channels across all probes. Two different fixtures are available:
- Customer Deskew Fixture for P6800 Series Probes
- Customer Deskew Fixture for P6900 Series Probes
For ordering details, please see the Ordering Information section.
Analog Acquisition Characteristics(with P6800 or P6900 Series probes)
Characteristic |
Description |
Bandwidth |
3 GHz (typical) |
Attenuation |
10X, ±1% |
Offset and Gain (Accuracy) |
±50 mV, ±2% of signal amplitude |
Channels Demultiplexed |
4 |
Run/Stop Requirements |
None, analog outputs are always active |
iCapture™ Analog Outputs |
Compatible with any supported external Tektronix oscilloscope |
iCapture Analog Output BNC Cables |
Four (4) low loss, 10X, 36 in. |
Physical Characteristics
Dimensions |
mm |
in. |
Height |
262 |
10.3 |
Width |
61 |
2.4 |
Depth |
381 |
15 |
Weight |
kg |
lb. |
Net |
3.1 |
6.7 |
Shipping |
6.3 |
13.7 |
Trigger Characteristics
Characteristic |
Description |
Independent Trigger States |
16 |
Maximum Independent If/Then Clauses per State |
16 |
Maximum Number of Events per If/Then Clause |
8 |
Maximum Number of Actions per If/Then Clause |
8 |
Maximum Number of Trigger Events |
26 (2 counters/timers plus any 24 other resources) |
Number of Word Recognizers |
24 |
Number of Transition Recognizers |
24 |
Number of Range Recognizers |
8 |
Number of Counters/Timers |
2 |
Trigger Event Types |
Word, Group, Channel, Transition, Range, Anything, Counter Value, Timer Value, Signal, Glitch, Setup-and-Hold Violation, Snapshot |
Trigger Action Types |
Trigger Module, Trigger All Modules, Trigger Main, Trigger MagniVu, Store, Don't Store, Start Store, Stop Store, Increment Counter, Decrement Counter, Reset Counter, Start Timer, Stop Timer, Reset Timer, Snapshot Current Sample, Goto State, Set/Clear Signal, Do Nothing |
Maximum Triggerable Data Rate |
3.0 Gb/s |
Trigger Sequence Rate |
DC to 800 MHz (1.25 ns) |
Counter/Timer Range |
48 bits each (~4 days at 1.25 ns) |
Counter Rate |
DC to 800 MHz (1.25 ns) |
Timer Clock Rate |
800 MHz (1.25 ns) |
Counter/Timer Test Latency |
0 ns |
Range Recognizers |
Double bounded (408 channel max). Can be as wide as any group, must be grouped according to specified order of significance |
Setup-and-Hold Violation Recognizer |
|
Setup time range |
From 7.5 ns before to 7.5 ns after clock edge in 20 ps increments. This range may be shifted towards the positive region by 0 ns, 2.5 ns, 5 ns, or 7.5 ns |
Hold time range |
|
Trigger Position |
Any data sample |
MagniVu Trigger Position |
MagniVu position can be set from 0% to 60% centered around the MagniVu trigger |
Storage Control (Data qualification) |
All, Global (conditional), by state (start/stop), block, by trigger action, or transitional. Also force main prefill selection available |
TLA7SAxx Characteristics
General
Characteristic |
Description |
Number of Lanes |
|
TLA7SA08 |
8 differential inputs, x4 |
TLA7SA16 |
16 differential inputs, x8 |
Record Length |
TLA7SA16: 160M Symbols per differential input, 8 GB physical memory total (16 GB physical memory for a x16 configuration) TLA7SA08: 160M Symbols per differential input, 4 GB physical memory total
160M Symbols translates into 160 ms at 8 GT/s, 320 ms at 5 GT/s, or 640 ms at 2.5 GT/s at 100% bus utilization |
Time Stamp Range |
292 hours |
Time Stamp |
50 bits at 936 ps resolution |
Clocking/Acquisition Modes |
TLA module without SSC (Spread Spectrum Clocking) , External Reference Clock (100 MHz ±10%) with or without SSC |
External reference clock frequency tolerance |
±300 ppm |
Number of Mainframe Instrument Slots Required per TLA Series Module |
2 |
Module Configuration Requirements
Module |
Bi-Directional Link Width |
|||
X1 |
X4 |
X8 |
X16 |
|
TLA7SA08 |
1 |
1 |
0 |
0 |
TLA7SA16 |
1 |
1 |
1 |
2 |
Input Characteristics (with P67SA00 Series probes)
Characteristic |
Description |
Capacitive Loading |
See P67SA00 Series Probe Manual |
Minimum Data Eye |
See P67SA00 Series Probe Manual |
Acquisition Characteristics (with P67SA00 Series probes)
Characteristic |
Description |
Dynamic Link-width Switch Latency |
Consumes up to 48 symbols (typical) |
Dynamic Link-rate Switch Latency |
<200 ns EIDLE time (typical) (with either internal reference clock or spread spectrum using external reference clock) |
Maximum time to change to Gen1 rate |
2 TS1 |
Maximum time to change to Gen2 rate |
1 EIEOS + 3 TS1 |
Maximum time to change to Gen3 rate |
1 EIEOS + 6 TS1 |
Number of FTS Packets Required to Re-sync Following L0s Exit |
Gen1*1: 4 FTS (typical) Gen2*1: 1 EIEOS + 6 FTS (typical) Gen3*1: 1 EIEOS + 4 FTS (typical) |
*1 Assumes an EIDLE ranging from 20 ns to 2 ms, with either internal reference clock or spread spectrum using external reference clock.
Filter Characteristics
Characteristic |
Description |
Ordered Sets |
TS1, TS2, SKP, EIOS, FTS, EIEOS, SDS |
DLLPs |
Ack, Nak, PM, Vendor Specific, FC1, FC2, UpdateFC |
TLPs |
MRd, MRdL, MWr, IORd, IOWr, CfgRd0, CfgWr0, CfgRd1, CfgWr1, Msg, MsgD, Cpl, CplD, CPlLk, CPlDLk, FetchAdd, Swap, CAS, LPrfx, EPrfx |
Trigger Characteristics
Characteristic |
Description |
Independent Trigger States |
8 |
Trigger Sequencer Rate |
Operates at symbol rate time (Gen1, Gen2, Gen3) |
Maximum Independent If/Then Clauses per State |
8 |
Maximum Number of Events per If/Then Clause |
8 |
Maximum Number of Actions per If/Then Clause |
8 |
Maximum Number of Event Counters per State |
2 |
Event Counter Range |
31 bit |
Number of TLP Packet Recognizers per Link Direction |
4 |
Number of DLLP Packet Recognizers per Link Direction |
4 |
Number of Sequence Recognizers |
4 |
Number of Symbols per Sequence Recognizer |
16 |
Number of Link Event Recognizers |
4 |
Number of Global Counters/Timers |
4 |
Trigger Event Types |
Anything, TLP, DLLP, Sequence, Link Event, Counter, Timer |
Trigger Action Types |
Trigger, Trigger All Modules, Wait for System Trigger, Goto, Increment Counter, Decrement Counter, Reset Counter, Start Timer, Reset Timer, Reset and Start Timer, Stop Timer, Reset and Stop Timer, Set Signal Out, Clear Signal Out, Arm Module, Start Storage, Stop Storage, Do Nothing |
Counter/Timer Range |
48 bit (~5 days with 3.6 ns resolution) |
Counter/Timer Test Latency |
68 ns |
Storage Control (Data qualification) |
By state (start/stop) |
Physical Characteristics
|
TLA7SA16 |
TLA7SA08 |
||
Dimensions |
mm |
in. |
mm |
in. |
Height |
262 |
10.3 |
262 |
10.3 |
Width |
61 |
2.4 |
61 |
2.4 |
Depth |
381 |
15 |
381 |
15 |
Weight |
kg |
lb. |
kg |
lb. |
Net |
3.20 |
7.06 |
2.84 |
6.25 |
Shipping |
7.30 |
16.1 |
6.94 |
15.3 |
