Мощное программное обеспечение для анализа
Объединив возможности бесплатного пакета ПО PWRVIEW и анализаторов потребляемой мощности Tektronix, можно получить мощный инструмент анализа, исключающий необходимость в разработке и поддержке каждым заказчиком своего программного обеспечения. Теперь можно намного проще и эффективнее выполнять длительное и трудоёмкое тестирование КПД, тестирование потребляемой мощности, анализ источников постоянного и переменного тока, анализ мощности, потребляемой от 3-фазной сети, или анализ гармоник.
Основные преимущества
- Удалённый контроль, анализ и регистрация результатов
- Настройка и выполнение адаптированных под требования заказчиков испытаний типа «годен/негоден»
- Меню «Applications» (установленных по умолчанию областей применения) для быстрой настройки
- Просмотр осциллограмм, графиков гармоник и тенденций
Соответствие нормативным требованиям
При помощи анализатора PA3000 с программным обеспечением PWRVIEW и генерируемых в формате PDF отчётов можно упростить предварительное и окончательное тестирование устройств на соответствие разным нормативным документам. Теперь можно уверенно и без проблем пройти проводимые третьей стороной тесты готовой продукции на соответствие требованиям, исключив повторное тестирование и ревизии разработок, на которые потребовалось бы дополнительное время и средства.
Основные преимущества- Точность до 10 мВт, соответствующая требованиям IEC62301 к измерениям мощности в режиме ожидания
- Тестирование КПД устройств УРОВНЯ VI (EPS)
- Тестирование на соответствие стандарту Energy Star, требованиям Энергетической комиссии Калифорнии (CEC) и Центра сертификации качества Китая (CQC)
- Соответствие стандарту MIL-1399 «Тестирование гармоник тока»
Точность и разрешение, актуальные в длительной перспективе
Так как анализатор PA3000 имеет огромный запас по сравнению с требованиями большинства нормативных документов, которые предъявляются к точности и разрешению анализаторов потребляемой мощности, инвестиции в этот прибор можно считать надёжно защищёнными в длительной перспективе.
Основные преимущества
- Высокая базовая точность: 0,04 % при измерении напряжения и тока
- Широкий диапазон измеряемой мощности — от 10 мВт до МВт
- 16-разрядный АЦП, обеспечивающий высокое разрешение
Достаточная полоса пропускания гармоник и частота дискретизации
Анализатор PA3000 не ограничивает сигналы узкой полосой пропускания. Наоборот, он регистрирует максимум данных, чтобы показать влияние высокочастотных гармоник на измерения напряжения и тока, что выгодно выделяет этот анализатор среди других приборов учёта энергии такого же класса. Содержание гармоник можно анализировать при частоте основной до 100 кГц. При необходимости используются полосовые фильтры.
Основные преимущества
- Широкая полоса пропускания 1 МГц для регистрации высокочастотных гармоник
- Высокая частота дискретизации 1 Мвыб/с для повышения качества изображения
- Анализ гармоник до 100-го порядка
Установленные по умолчанию области применения для простой, повторяемой настройки
В анализатор PA3000 с ПО PWRVIEW загружены заданные по умолчанию режимы применения и тесты на соответствие, позволяющие быстро и точно настроить тестирование и получить высокоточные повторяемые результаты измерений.
Основные преимущества
- Тестирование КПД источников питания и систем освещения
- Тестирование энергопотребления бытовыми приборами
- Анализ мощности, потребляемой приводами 3-фазных двигателей с широтно-импульсным регулированием
- Разные типы тестов на соответствие с выдачей отчётов
The Tektronix PA3000 is a one to four channel power analyzer that is optimized for testing today’s single and multi-phase, high efficiency power conversion products and designs. Use it to quickly visualize, analyze, and document power efficiency, energy consumption, and electrical performance to the latest regional and international standards, including Level VI, EnergyStar, CEC, IEC 62301, CQC-3146, and more.
Key features and specifications
- One to four channels support single and three phase applications
- 10 mW standby power measurement
- 1 MHz bandwidth
- 1 MS/s sampling rate
- 16 bit A/D
- Harmonic analysis to 100th order
- ±0.04% basic voltage and current accuracy
- Measurements to 30 Arms and 600 Vrms Cat II (2000 Vpk)
- USB and LAN interfaces standard (GPIB option)
- Free PWRVIEW software
- Full color graphical display for intuitive readouts of measured values, waveforms, harmonics, and energy integration plots
The essential power measurement tool for R&D and validation
- High accuracy supports testing to Level VI efficiency standards for external AC/DC power supplies
- Dedicated energy consumption testing in integration mode for standards like Energy star and CEC
- Complete solution for full compliance testing to IEC 62301 standby power requirements
- High 1 MHz bandwidth supports the LED module energy certification requirements of CQC-3146 as well as harmonic analysis of designs with higher fundamental frequencies
- More than 50 standard measurement functions, including harmonics, frequency, and star-delta computation
- Multiple analog and digital inputs for sensor data such as thermocouples, speeds sensors, and torques sensors
- Built-in ±15 V supplies for external transducers to support high current applications
Applications
- AC/DC power supplies and LED drivers
- Appliances and consumer electronics
- UPS systems, inverters, and DC/AC conversion systems
- Wireless battery charging
- Three phase motors and drives
AC/DC power supplies and LED drivers
Key tests include efficiency, standby power, harmonics, inrush current, and input power parameters such as power factor. The PA3000's graphical color display and PWRVIEW software boost productivity when performing these tests.
Example test configuration and measurement results for testing AC/DC power supplies and LED drivers
Efficiency Testing
- 0.04% basic accuracy for voltage and current enables high efficiency testing and incremental design changes for various regulatory standards
- 1 to 4 channels for comparative testing on two power supplies simultaneously
- Wide dynamic range from 90 μA to 30 A enables testing no load through full load.

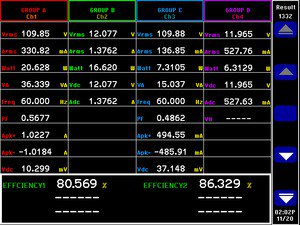

Comparative efficiency testing on two AC-DC power supplies simultaneously
Standby Power testing
- 90 μA current measuring capability for standby power testing as low as 10 mW to support demanding low power designs
- Full compliance IEC 62301 ED 2.0 standby power standard test with device uncertainty calculations as required by the standard
- Long averaging enables stable standby power results
- Auto-up ranging mode enables gap-less measurement
Full compliance IEC 62301 ED 2.0 Standby Power testing with PWRVIEW
Harmonic analysis
- Voltage and current harmonic analysis up to 100th order
- Easy THD and distortion factor measurements

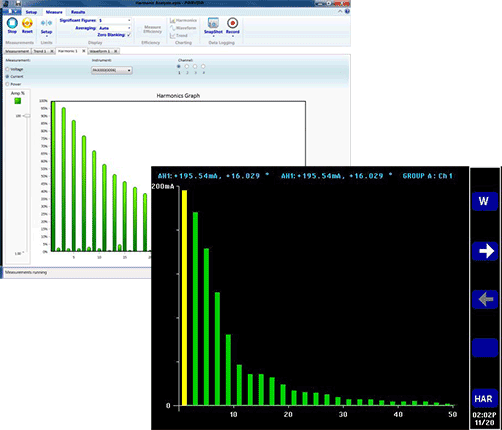

Harmonics testing up to 100th order
Limits and Specification testing
- Custom limits setup with free PWRVIEW software enables standards and specification testing to set limits

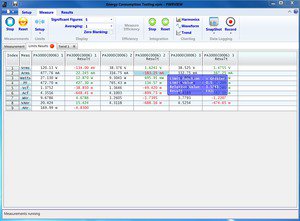

Custom limits setup for personalized limit checks on all measured parameters
Inrush Current testing
- Min Max hold feature with 1 MS/s sampling rate allows testing for inrush events
Inrush event testing with Trend chart and Min Max hold feature
Input Power analysis
- More than 50 measurement parameters including Power factor, crest factor, THD
- Continuous 1 MS/s sampling rate enables accurate and gap-less input power analysis on non-sinusoidal signals
Appliances and consumer electronics
Key tests include energy consumption and standby power. The PA3000's built-in test modes simplify test setup.
Example test configuration and measurement results for testing appliances and consumer electronics
Energy Consumption testing
- Dedicated Energy Consumption (Integrator) mode enables easy setup and testing for home and office appliances
- Auto-up-only ranging feature with PWRVIEW enables gapless energy consumption testing
- Integration and trend charts for long term monitoring
- 1 to 4 channels enable simultaneous testing of multiple products

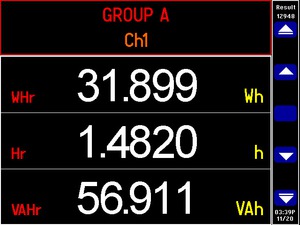

Energy Consumption testing
Standby Power testing
- 90 μA current measuring capability and various ranging features for standby power testing on modern appliances
- Full compliance IEC 62301 standby power standard test with device uncertainty calculations as required by the standard
- Long averaging enables stable standby power results
- Auto-up ranging mode enables gap-less measurement
Dedicated Standby Power testing mode and Integrator mode
Solar inverters and UPS systems
Key requirements include system efficiency testing and single or three-phase output waveform analysis. The PA3000 enables long-term datalogging in PWRVIEW software or to a USB memory stick.
Example test configuration and measurement results for testing solar inverters and UPS systems
System Efficiency testing
- Up to four channels for simultaneously measuring all the stages of a UPS system or solar inverters
- High AC (0.04%) and DC (0.05%) basic accuracy for accurate measurements on all conversion stages
- 90 μA-30 A direct current measurement enables testing on wide range of loads
- Available high accuracy current transducers enable high power testing in kilowatt range
- Waveform view enables monitoring all phases simultaneously on single and three phase systems
Three phase waveform view
Output Voltage and Power Analysis (1θ & 3θ )
- Default wiring configurations for single and three phase systems make it easy to setup and test complex voltage and power parameters
- 3 Phase 3 Wire (3V3A) configuration allows star delta conversion for line to line voltage, line to neutral voltage and phase or neutral current measurement.
- Voltage crest factor, VTHD and harmonics up to 100th order enable analyzing output voltage for various load conditions
- Trend charts in PWRVIEW software for long term monitoring
- Data logging via USB flash drive or PWRVIEW software for logging tracking data over a long period.

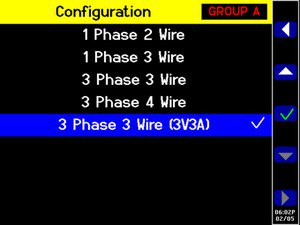

Default wiring configuration choices
Wired and wireless automotive battery chargers
Key tests include efficiency and harmonic analysis. The 4-channel PA3000 enables testing power at each stage of the wireless charging system, including transmitter and receiver.
Example test configuration and measurement results for testing wireless automotive battery chargers
Efficiency testing
- High AC (0.04%) and DC (0.05%) basic accuracy for accurate measurements on all battery charger stages
- 30 A internal shunt and available high accuracy current transducers for high power testing in kilowatt range
- Standard ±15 V power supply on the back panel to power external current transducers
- Up to four channels enable testing power on each stage of wireless charger including the transmitter and the receiver
- Dedicated efficiency measurement on PWRIVEW software and Math function on PA3000 enable easy setup
- 1 MHz bandwidth enables accurate RMS and efficiency measurements for high frequency transmitter and receiver power signals
Harmonic analysis
- 1 MHz bandwidth enables harmonic analysis on wireless chargers with KHz fundamental frequency on transmitter and receiver
- Voltage, current and power harmonics to 100th order with THD and distortion factor to analyze distorted input and output signals
Three phase motor drives
Key tests include output power, efficiency, and harmonic analysis. The PA3000's PWRVIEW software offers wizard-driven setups to simplify 3-phase 3-wire and 3-phase 4-wire test configurations.
Example test configuration and measurement results for testing three-phase motor drives
Output power
- Dedicated PWM Motor drive mode to test output voltage waveforms
- High frequency sampling with digital filtering in PWM mode, to reject the carrier frequency and detect the motor frequency while still using pre-filtered data for all measurements
- Optimized for steady-state three phase power measurements on the output.
Efficiency testing
- Dedicated application wizard on PWRIVEW software and Math function on PA3000 enable easy setup for motor drive efficiency
- Available 3 Phase 3 Wire configuration makes it easy to measure three phase inputs and outputs with four channels for system efficiency
- Four analog inputs rated at ±10 V and two counter inputs with 1 MHz bandwidth for torque and speed measurements enable measuring complete mechanical system efficiency
- 30 A internal shunt and available high accuracy current transducers for high power testing in kilowatt range
- Standard ±15 V power supply on the back panel to power external current transducers
PWM Motor Efficiency Wizard in the PWRVIEW software
Harmonic analysis
- Accurate frequency detection from 0.1 Hz – 1 MHz enables accurate frequency and harmonic measurements from low to high motor speeds
- Voltage, current and power harmonics to 100th order with THD and distortion factor to analyze distorted input and output signals and understand the heating effects of the signal

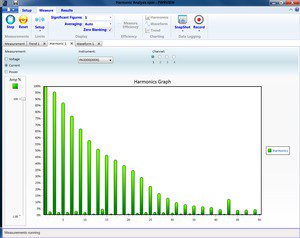

PWRVIEW Harmonic analysis
PWRVIEW PC software
PWRVIEW is a supporting software application for Windows PCs that compliments and extends the functionality of the PA3000. PWRVIEW enables you to do the following:
- Communicate with the PA3000 over any of the instrument's comm ports (USB, LAN, GPIB, RS-232)
- Change instrument settings remotely
- Transfer, view, and save measurement data in real-time from the instrument, including user-defined hi/lo limit waveforms, harmonic bar charts, and plots
- Log measurement data over a period of time or with manual trigger
- Communicate with and download data from multiple PA3000 instruments simultaneously
- Create formulas for the calculation of power conversion efficiency and other values
- Export measurement data to .csv format for importing into other applications
- Automate instrument setup, data collection, and report generation for key applications with just a few clicks, using wizard-driven interfaces
- Perform automated full compliance testing for Low Power Standby per IEC62301 ED 2.0 and MIL-STD-1399-Section 300B
- Additional information for using PWRVIEW is available in the built-in online help or can be downloaded as a PDF file from the Tektronix Web site.

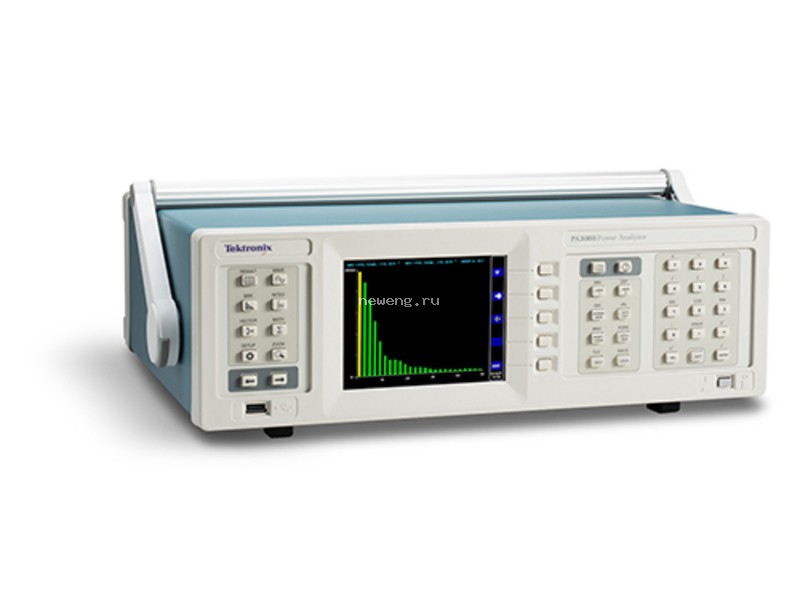

PA3000 front panel
PA3000 rear panel with four input channels and optional GPIB interface
Available measurements
Vrms – Volts RMS | Acf – Amps crest factor | VAHf – Fundamental VA hours |
Arms – Amps RMS | Vthd – Volts total harmonic distortion | VArHf – Fundamental VAr hours |
Watt – Watts | Vdf – Volts distortion factor | Vf – Fundamental volts rms |
VA – Volts-Amps | Vtif – Volts telephone influence factor | Af – Fundamental amps rms |
VAr – Volts-Amps reactive power | Athd – Amps total harmonic distortion | Wf – Fundamental power |
Freq – Frequency | Adf – Amps distortion factor | VAf – Fundamental apparent power |
PF – Power factor | Atif – Amps telephone influence factor | VArf – Fundamental reactive power |
Vpk+ – Volts peak (positive) | Z – Impedance | PFf – Fundamental power factor |
Vpk- – Volts peak (negative) | R – Resistance | Vrng – Voltage range |
Apk+ – Amps peak (positive) | X – Reactance | Arng – Amps range |
Apk- – Amps peak (negative) | Hr - Hour | Vll – Voltage Line-to-Line |
Vdc – DC Volts | WHr – Watt hours | Vln – Voltage Line-to-Neutral |
Adc – DC Amps | VAHr – VA hours | An -- Neutral current ( or phase 3 current for 3p3w ) |
Vrmn – Volts rectified mean | VArHr – VAr hours | V Harmonics – Voltage harmonics |
Armn – Amps rectified mean | AHr – Amp hours | A Harmonics – Amps harmonics |
Vcmn – Volts corrected rectified mean | Wav – Average watts | W Harmonics – Watts harmonics |
Acmn – Amps corrected rectified mean | PFav – Average power factor | |
Vcf – Volts crest factor | CVAr – Correction VAr |
Measurement channels
One to four channels, factory configurable
Voltage connections (4 mm safety banana jack inputs) | Measurements to 600 Vrms, DC to 1 MHz, continuous Measurements to 2000 Vpk, maximum crest factor of 10 |
30 A current connection (4 mm safety banana jack inputs) | Measurements to 30 Arms, DC to 1 MHz, continuous Measurements to 200 Apk, maximum crest factor of 10 Measurements to 75 Arms for 1 s non-repetitive |
1 A current connection (4 mm safety banana jack inputs) | Measurements to 1 Arms, DC to 1 MHz, continuous Measurements to 5 Apk, maximum crest factor of 10 Measurements to 2 Arms for 1 s non-repetitive |
External current connection (2 mm safety banana jack inputs) | Measurements to 20 Vpk, DC to 1 MHz, continuous Measurements to 50 Vpk for 1 s |
Analog card power supply outputs | ±15 V supply ±15 V ±5%, 250 mA max (protected) per analog card output |
Each measurement channel includes a set of 4 mm stackable banana safety test leads and 2 mm stackable banana safety test leads. |
Ordering information
PA3000 models
A PA3000 must be ordered with one of the following options:
- Opt. 1CH
- One input module installed
- Opt. 2CH
- Two input modules installed
- Opt. 3CH
- Three input modules installed
- Opt. 4CH
- Four input modules installed
Standard accessories
- Lead Set (one per input module)
- Country-specific power cord
- Power output for external current transducers
- USB Host - to - Device interface cable
- Certificate of calibration documenting traceability to National Metrology Institute(s) and ISO9001 Quality System Registration
- Three year product warranty
Options
- Opt. GPIB
- GPIB Interface
Language options
No language options. Translated manuals can be downloaded from the Tektronix Web Site for the following languages:- French (Tektronix part number, 077115300)
- German (Tektronix part number, 077115400)
- Japanese (Tektronix part number, 077115500)
- Korean (Tektronix part number, 07711600)
- Simplified Chinese (Tektronix part number, 077115700)
- Spanish (Tektronix part number, 077116000)
- Portuguese (Tektronix part number, 077116100)
Power cord options
- Opt. A0
- North America power plug (115 V, 60 Hz)
- Opt. A1
- Universal Euro power plug (220 V, 50 Hz)
- Opt. A2
- United Kingdom power plug (240 V, 50 Hz)
- Opt. A3
- Australia power plug (240 V, 50 Hz)
- Opt. A4
- North America power plug (240 V, 50 Hz)
- Opt. A5
- Switzerland power plug (220 V, 50 Hz)
- Opt. A6
- Japan power plug (100 V, 50/60 Hz)
- Opt. A10
- China power plug (50 Hz)
- Opt. A11
- India power plug (50 Hz)
- Opt. A12
- Brazil power plug (60 Hz)
- Opt. A99
- No power cord
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. D1
- Calibration Data Report
- Opt. D3
- Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5
- Calibration Data Report 5 Years (with Opt. C5)
- Opt. G3
- Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- Opt. G5
- Complete Care 5 Years (includes loaner, scheduled calibration, and more)
Recommended accessories

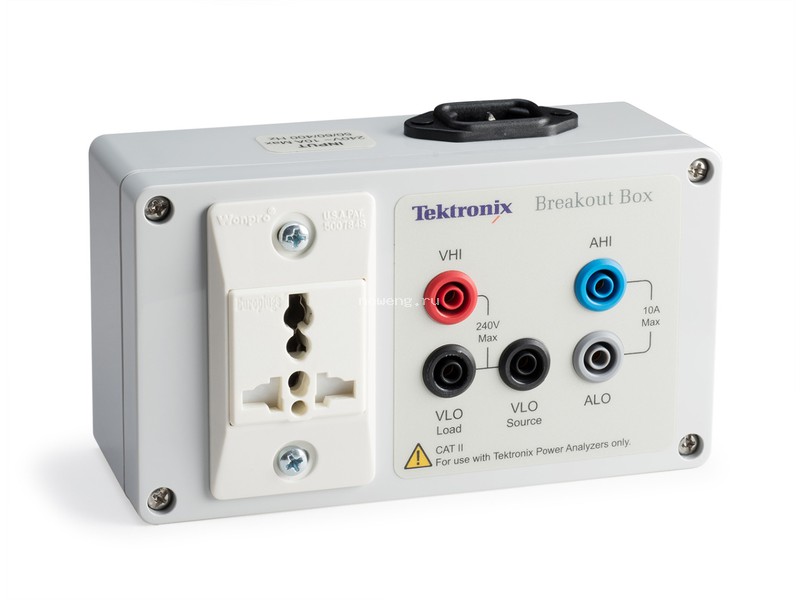

- BB1000-UN
- Universal breakout box (120 V/240 V)
- CT-60-S
- Fixed-core current transducer, AC/DC, high accuracy, up to 60 A
- CT-200-S
- Fixed-core current transducer, AC/DC, high accuracy, up to 200 A
- CT-1000-S
- Fixed-core current transducer, AC/DC, high accuracy, up to 1000 A
- CT-100-M
- Fixed-core current transducer, AC/DC, Hall effect, up to 100 A
- CT-200-M
- Fixed-core current transducer, AC/DC, Hall effect, up to 200 A
- CT-1000-M
- Fixed-core current transducer, AC/DC, Hall effect, up to 1000 A
- CL200
- Current clamp, 1 A - 200 A, for Tektronix Power Analyzers, AC only
- CL1200
- Current clamp, 0.1 A - 1200 A, for Tektronix Power Analyzers, AC only
- PA-LEADSET
- Replacement lead set for Tektronix Power Analyzers (One channel lead set)
See Accessories datasheet # 55W-30309-0 for more detailed descriptions.
Модель | Количество каналов | Основная точность (V и I) | Максимальное входное напряжение | Максимальный входной ток | Полоса пропускания при измерении |
PA3000 | 1-4 | 0,04 % показания + 0,04 % диапазона | 600 В среднеквадратичное значение, КАТ. II (2 000 В пиковое значение) | 30 A среднеквадратичное значение | От 0 до 1 МГц |
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise. Specifications are subject to change without notice.
Current accuracy
- Accuracy Arms
- (45 Hz to 850 Hz)
- 1 A shunt
- ±0.04% reading ±0.04% range
- 30 A shunt
- ±0.04% reading ±0.04% range
- External shunt
- ±0.1% reading ±0.04% range
- Accuracy Arms, typical
- (10 Hz to 45 Hz, 850 Hz to 1 MHz)
- 1 A shunt
- ±(0.05 + 2×10-5 × f)% reading ±0.05% range ±40 μA
- 30 A shunt
- ±(0.05 + 2×10-5 × f)% reading ±0.05% range ±4 mA
- External shunt
- ±(0.1 + 2×10-5 × f)% reading ±0.05% range ±1.1 mV
- Accuracy Adc
- 1 A shunt
- ±0.05% reading ±0.1% range ±100 μA
- 30 A shunt
- ±0.05% reading ±0.1% range ± 10mA
- External A shunt
- ±0.1% reading ±0.1% range ±1.1 mV
- Ranges
- (peak)
- 1 A shunt
- 12.5 mA, 25 mA, 50 mA, 125 mA, 250 mA, 500 mA, 1.25 A, 2.5 A, 5 A
- 30 A shunt
- 500 mA, 1 A, 2 A, 5 A, 10 A, 20 A, 50 A, 100 A, 200 A
- External A shunt
- 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V, 20 V
Voltage accuracy
- Accuracy Vrms (45 Hz to 850 Hz)
- ±0.04% reading ±0.04% range
- Accuracy Vrms (10 Hz to 45 Hz, 850 Hz to 1 MHz), typical
- ±(0.05 + 1×10-5 × f)% reading ±0.05% range ±20 mV
- Accuracy Vdc
- ±0.05% reading ±0.1% Range ±50 mV
- Ranges (peak)
- 5 V, 10 V, 20 V, 50 V, 100 V, 200 V, 500 V, 1000 V, 2000 V
Supplemental characteristics
The following specifications are supplemental characteristics that provide additional information about instrument functions and performance. These characteristics are non-warranted specifications; they describe the typical performance of the PA3000.
- Hours accuracy
- ±0.0125%
- Watts accuracy (45 Hz to 850 Hz)
- ±(Vrmsacc × Arms) ±(Armsacc × Vrms)
- Watt hour accuracy
- ±(Wattacc + Houracc)
- VA accuracy (45 Hz to 850 Hz)
- ±(Vrmsacc × Arms) ±(Armsacc × Vrms)
- PF accuracy
- Wacc / VA
- Frequency accuracy
- 0.1 Hz to 10 Hz
- 0.1% of reading
- 10 Hz to 1 MHz
- 0.5% of reading
- Analog inputs
- Ranges
- 10 Vdcrange: ±1 V to ±10 V
Vdcrange: ±0.1 V to ±1 V
- Accuracy
- ±0.2% of reading ±0.2% of range ±0.005 V
- Sample rate
- 1000 samples per second
Communications
- IEEE-488 (Option)
- IEEE Std 488.1 compliant
- RS-232
-
Baud rates from 9600 bps, 19200 bps (default), and 38400 bps
8 bit, No parity, 1 stop bit, hardware flow control
9 pin male D-type connector
- Ethernet
-
IEEE 802.3 compatible, 10Base-T
RJ-45 connector with Link and Activity indicators
TCP/IP connection on port 5025
- USB device
- USB 2.0 compatible, Full speed (12 Mb/sec)
General specifications
- EMC
- Conforms to European Union EMC directive
- Safety
- Conforms to European Union Low Voltage directive
- Temperature
- Operating
- 0 °C to 40 °C (32 °F to 104 °F), 70% relative humidity up to 31 °C (87.8 °F)
- Storage
- -25 °C to 65 °C (-13 °F to 149 °F)
- Altitude
- Up to 2000 m (6562 ft) above sea level
- Warm up time
- One hour
- Calibration period
- One year
- Power supply
- 100 V to 240 VAC, 50 Hz or 60 Hz, 120 VA maximum
- Transducer power supply
- ±15 V, Maximum current 250 mA per analog card
- Dielectric strength
-
Mains supply inlet (Live + Neutral to earth): 1.5 kVAC
Voltage measurement inputs : 2 kVpkto earth
Current measurement inputs : 2 kVpkto earth
- Dimensions
- With handle and feet
-
14.6 cm high × 45 cm wide × 33.5 cm deep (5.75 in × 17.75 in × 13.2 in)
- Without handle and feet
-
13.2 cm high × 42 cm wide × 33.5 cm deep (5.2 in × 16.5 in × 13.2 in)
- Weight
- 9.5 kg (20.9 lb) – 4 channel instrument with GPIB option installed
- Warranty
- Three years
