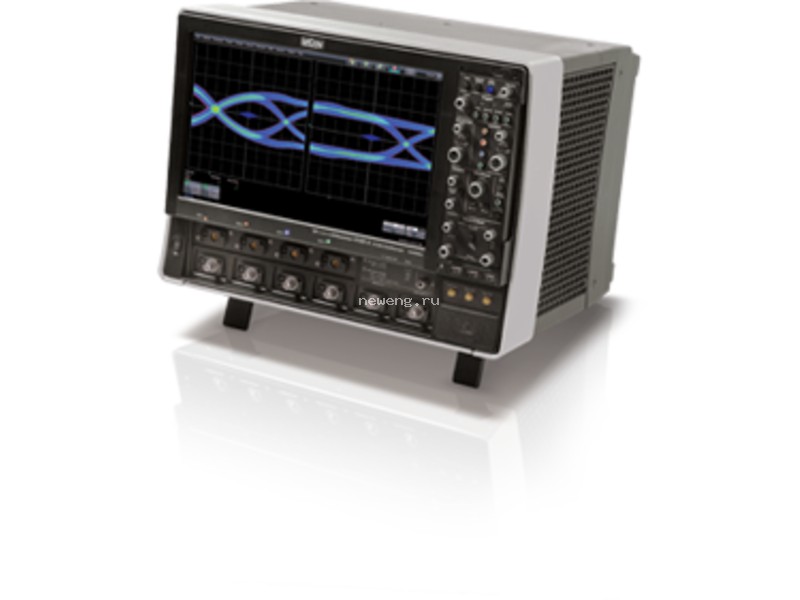

- Compliant with the PCI Express Base Specification Revision 3.0 and the Card Electromechanical Specification Revision 3.0
- Provides early debugging ability even though the compliance specification is not yet released
- Powerful SDA III analysis package helps to find the root cause of failures
- Eye Doctor II provides the ability to emulate and de-embed serial data channels and emulate receive equalizers for accurate testing
- QualiPHY automated test framework provides connection diagrams, automated oscilloscope operation and report generation
If a failure is found, Teledyne LeCroy's SDA III serial data analysis package is available to help find the root cause quickly and easily. SDA III has the ability to perform Eye and Jitter measurements simultaneously and is fully integrated into the oscilloscope application software. In addition, SDA III provides insight into the measured Eye and Jitter parameters making it easier to identify the sources of problems.
Additionally, Eye Doctor II provides the channel emulation, de-embedding and equalization tools that engineers need for next generation serial data standards.
The Teledyne LeCroy QualiPHY platform provides an easy to configure user interface, allows for custom test and limit selection, displays connection diagrams to the user to ensure proper connectivity, and generates a comprehensive test report. In addition, all of the waveforms tested by QPHY-PCIe3 can be saved to easily share information or rerun the tests at a later time.
QPHY-PCIe3 Test Coverage- Equalization PresetsVtx-fs-no-eq
- Vtx-EIEOS-FS Limits
- Vtx-EIEOS-RS Limits
- Compliance Eye Diagrams
- TTx-DDJ
- TTx-UTJ
- TTx-UDJDD
- TTX-UPW-TJ
- TTx-UPW-DJDD
- Unit Interval
- Vtx-cm-ac-pp
- Vtx-dc-cm
