Fluke 700PV4

цена по запросу

шт.

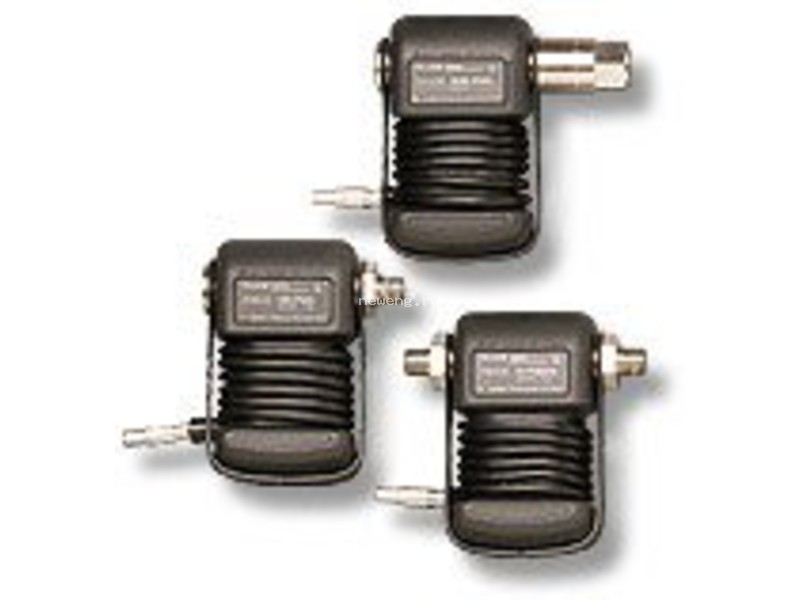

700PV4 Модуль вакуумный (-1000 mbar)

Описание Характеристики Файлы

Модель Название	Описание
700PV4	700PV4 Модуль вакуумный (-1000 mbar)

Display pressure readings in any of 10 different pressure units you specify in the calibrator setup
Rugged urethane molded case protects the module from rough handling and harsh conditions
Features internal temperature compensation from 0º C to 50º C for full-accuracy performance
Includes NIST-traceable calibration certificate
Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source
One year warranty

Specifications

Range

-15 psi / 103 kPa

Resolution

0.001 / 0.01

Reference Uncertainty (23 ± 3° C)

0.040%

Total¹ Uncertainty 1 year

0.070

High Side Media²

316 SS

Low Side Media²

Dry

Note

1)	Total uncertainty, one year for temperature range 0° C + 50° C.
	Total uncertainty, 1.0% of full span for temperature range - 10° C to 0° C.
	Compensated temperature range is 15° C to 35° C.
2)	"Dry" indicates dry air or non-corrosive gas as compatible media.
	"316 SS" indicates media compatible with Type 316 Stainless Steel.
	"C276" indicates media compatible with Hastelloy C276.
