Tektronix VNM-MED2

цена по запросу
шт.

Превосходный товарный знак определяется качеством контента, доставляемого посредством средств вещания (в том числе потокового). Sentry — это программное решение для мониторинга качества. Его развертывают поставщики услуг кабельного и эфирного телевидения, а также потокового видео OTT в самых разных операционных, производственных и коммерческих средах. Годы опыта позволили отточить технологию, и теперь она способна обеспечить точные, повторяемые и достоверные измерения и гарантировать, что зрители получают контент самого высокого качества.

Описание Характеристики Файлы

Medius offers an advanced reporting package that is particularly helpful in capturing detailed QoE information that quickly highlights the top offending programs and/or locations. The reporting capabilities allow each user to generate customized reports that provide as much or as little detail as required, from monthly high-level reports for executive staff to immediate notices for technicians as incidents occur.

Features and benefits

  • Consolidate data from multiple Sentry units
  • Centralized alarm reporting
  • Historical reporting and graphing
  • Alert filtering and resolution tracking
  • User-defined reporting template
  • Custom reports
  • Customizable dashboard display
  • Ability to upgrade multiple Sentry units
  • Error second and program availability reporting

Applications

  • Multiple-view alert dashboard reporting
  • QoE reporting
  • Automated report generation and email
  • Single point for NMS integration
  • Program statistics and availability reporting

Monitor your entire network with rich graphs and an easy-to-use Web-based interface

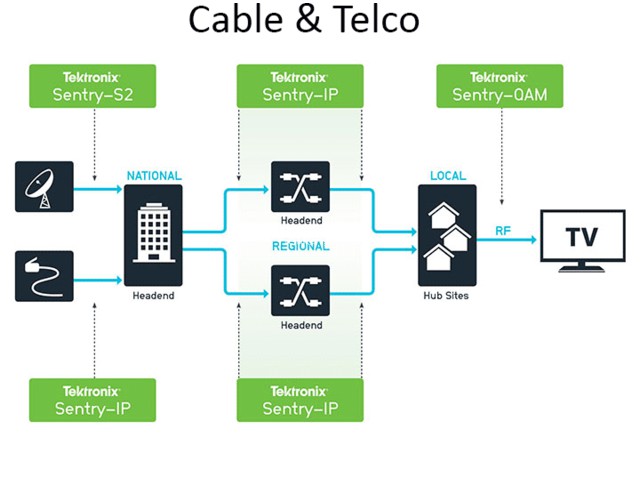

Medius is ideal for Network Operation Centers (NOCs) and provides a single interface for consolidated status, alerts, and reports from multiple Sentry and/or Sentry Verify, Sentry Assure, and Sentry Edge units across the network.

The complexity of today’s networks makes detecting, evaluating, reporting, and resolving subscriber audio and video QoE impacting events a costly and time-consuming headache. Medius provides operators with an alert dashboard that takes the guesswork out of error detection by quickly and accurately reporting and diagnosing video and audio issues occurring anywhere in the network. The alert dashboard includes a geographical view that displays all of the monitoring points on a map, showing which of them have alerts to quickly highlight problem areas or regions; a grid view that shows a program’s alert status across all monitoring points for fast identification and repair of the source locations having video and audio problems; and a tile view that provides a quick snapshot of the alert status of all programs or services and quickly highlights which programs need the most attention. This functionality dramatically reduces the number of technicians – and the time they spend – solving problems. By streamlining – or entirely eliminating in many cases – the need for the traditional “process of elimination” methodology, operators can dramatically reduce operational costs while ensuring subscribers enjoy a premium quality of experience (QoE).



Medius™ offers video service providers an effective way of managing and aggregating status, alerts, and reports from multiple Sentry®, Sentry Verify™, and Sentry Edge™ units deployed throughout a network.

Ordering Information

Models

VNM-MED2
Medius Application Manager

Power Plug Options

Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A4
North America power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
Opt. A99
No power cord
Модель Имя Видеосигнал Описание

VNM-MED2

Medius Любое Управление несколькими системами Sentry и Verify с помощью сквозных представлений.

Specifications

Platform Characteristics

Browser Support
Firefox, Safari, and Internet Explorer
MPEG/IP Input Port
1000BASE-T Ethernet interface
Management Port
1000BASE-T Ethernet interface

Physical Characteristics

Dimensions
Height
44 mm (1.73 in)
Width
437 mm (17.2 in)
Depth
600 mm (29.5 in)
Weight (net)
12.4 kg (27 lb.)
Power Requirements
100-240 V AC, 50-60 Hz

Environmental Characteristics

Temperature
Operating
+10°C to +35°C, 30°C per hour maximum gradient

Temperature of the intake air at the front and sides of the instrument

Non-operating
–20°C to +60°C, 30°C per hour maximum gradient
Power
4.0-1.7 A maximum, 100 - 240 V, 50/60 Hz

The maximum power consumption for any board combination measured is 175 W at 120 V by safety test
