Мощное программное обеспечение для анализа
Объединив возможности бесплатного пакета ПО PWRVIEW и анализаторов мощности Tektronix, можно получить мощный инструмент анализа, исключающий необходимость в разработке и поддержке каждым заказчиком своего ПО для тестирования энергопотребления, анализа мощности в режиме ожидания, источников постоянного и переменного тока или анализа гармоник на соответствие нормативным документам.
Основные преимущества
- Удалённый контроль, анализ и регистрация результатов
- Настройка и выполнение адаптированных под требования заказчиков испытаний типа «годен/негоден»
- Меню «Applications» (установленных по умолчанию областей применения) для быстрой настройки
- Просмотр осциллограмм, графиков гармоник и тенденций
Эффективное тестирование мощности или энергопотребления
Прибор PA1000 работает как счётчик электроэнергии со встроенным по умолчанию режимом сумматора, позволяя тестировать на соответствие нормативным документам, таким как стандарт Energy Star, Blue Angel, стандарты Энергетической комиссии Калифорнии (CEC) и другие, энергопотребление бытовых приборов, подключённых к разным линиям питания переменного тока, потребительской электроники, зарядных устройств для аккумуляторов, драйверов светодиодов, источников питания.
Основные преимущества
- Встроенный по умолчанию режим сумматора мощности для тестирования энергопотребления
- Быстрый автоматический выбор диапазонов для измерения разных нагрузок
- Расчёт экономного значения для электроэнергии в реальном времени по соответствующей формуле
- Широкий диапазон измеряемой мощности (от 5 мВт до нескольких МВт) для работы с разными нагрузками
Лучший в отрасли метод тестирования мощности до 5 мВт
Анализатор PA1000 с установленным ПО PWRVIEW обеспечивают реализацию полностью соответствующего стандарту IEC62301 метода тестирования мощности устройств в режиме ожидания в уникальном для отрасли диапазоне измерений — до 5 мВт. Таким образом, этот анализатор признан лучшим выбором для измерений источников питания, зарядных устройств для аккумуляторов, драйверов светодиодов и бытовых приборов с очень малой мощностью в режиме ожидания.
Основные преимущества
- Шунт на 1 А для измерений до 20 мкА
- Отчеты в формате PDF с выводом данных в виде XLS- и CSV-файлов
- Автоматический выбор диапазона для нестандартных слаботочных сигналов
- Показания неопределённости измерений в режиме реального времени, в соответствии со стандартом
Установленные по умолчанию области применения для простой, повторяемой настройки
Анализатор мощности PA1000 с ПО PWRVIEW — это целевое решение с установленными по умолчанию режимами работы приложения, обеспечивающими простое выполнение всех сложных настроек и точных, повторяемых измерений в любое время.
Основные преимущества
- Режимы: сумматор, мощность в режиме ожидания, пиковый и балластный
- Тесты: мощность в режиме ожидания на соответствие IEC62301, гармоники тока на соответствие IEC61000-3-2
- Отчеты в формате PDF, автоматическая регистрация, экспорт данных в виде XLS- и CSV-файлов

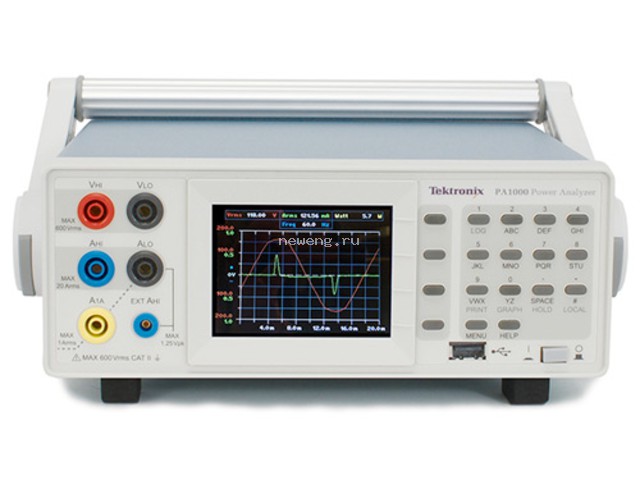

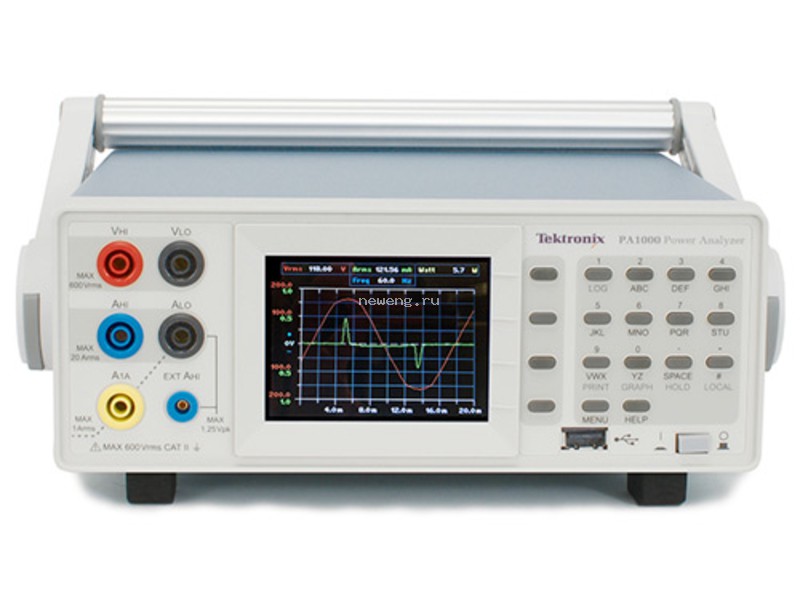

The Tektronix PA1000 is your best choice for making precision power measurements on single-phase power supplies and all types of products connected to the AC line. Whether you need to test for compliance with energy-usage regulations such as Energy Star™, or simply need to characterize your product's overall power-conversion performance and efficiency, you will find the PA1000 offers the most modern and complete test solution with performance and features unmatched by other single-phase analyzers.
Key performance specifications
- High measurement accuracy of 0.05% (basic voltage/current accuracy)
- 1 MHz bandwidth / 1 MS/s sample rate for demanding test requirements
- Up to 600 VRMS voltage input
- Up to 20 ARMS current input
Key features
- Bright color graphics display makes instrument setup and data readout easy
- Dual internal current shunts maximize accuracy for high- and low-current measurements
- Application-specific test modes simplify instrument setup and reduce the likelihood of user error
- Easy data export to USB flash drive or remote PC software, for reporting and analysis
- PWRVIEW PC software provides fully automated compliance testing to IEC 62301 requirements
- Many standard features such as GPIB, USB, Ethernet and harmonic analysis eliminate costly upgrade options
Applications
- Standby power and Energy Star™ compliance testing
- Lighting ballasts
- Consumer electronics and appliances
- Power supply testing
- Energy efficiency of any single-phase product
Bright graphics display
The color graphics display on the PA1000 is unmatched among single-phase power analyzers. It provides intuitive readout of not only measurement values, but also harmonic bar charts, waveform display, energy integration plots and more. Setup of the PA1000 for your particular application is also easy and flexible, using the menu-driven interface and soft keys.

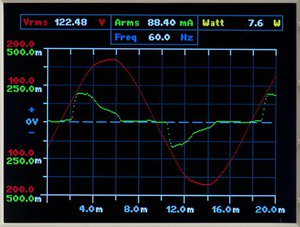

Full color display
Application-specific test modes
Some applications require special instrument settings to ensure proper measurements. The PA1000 simplifies setup for these applications by automatically choosing instrument settings and parameters that are optimized for each type of measurement application, resulting in more reliable measurement results with less opportunity for user setup error.
Selection of application-specific test modes
Ballast mode - Synchronizes measurements for highly modulated electronic ballast waveforms. In modern electronic lighting ballasts, it is often difficult to make accurate measurements because the output signals are high frequency waveforms that are heavily modulated by the power frequency. Ballast mode provides a way of locking the measurement period to the power frequency.

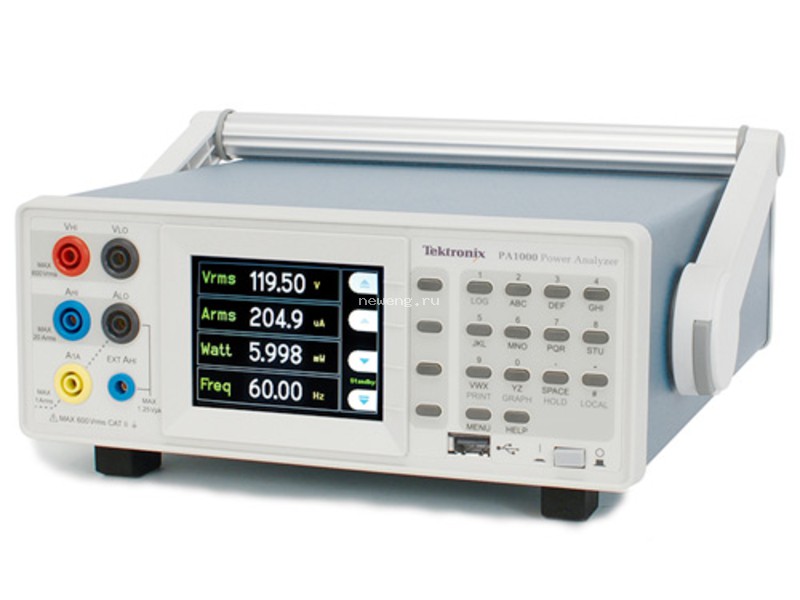

Standby power mode - Driven by consumer demand and energy efficiency regulations (such as ENERGY STAR), there is an ever-increasing need to measure power consumption of products while they are in standby mode. One of the most widely used standards for measurement is IEC 62301. Part of this standard requires the measurement of power over a prolonged period of time without missing any short duration power events. The PA1000 standby power mode provides continuous sampling of voltage and current to produce an accurate Watts measurement over the user specified period.
Inrush mode - For measuring the peak current during any event. Typically this is used to measure the peak current when a product is first switched on.
Integrator mode - Used to provide measurements for determining energy consumption (Watt-hours, Ampere-hours, etc.).
Standard harmonics analysis
The PA1000 features harmonics analysis to the 50th harmonic as a standard feature. Harmonics, THD and related measurements can all be analyzed simultaneously with other power parameters.

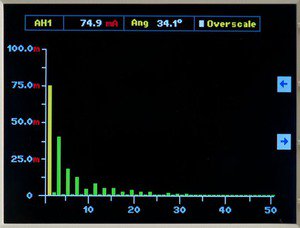

Harmonics bar chart display mode
Standard communication ports
The PA1000 comes standard with USB, Ethernet and GPIB communication ports, plus a front-mounted USB port for data logging to a flash drive.
PA1000 rear panel communication ports
PWRVIEW PC software for the PA1000 Power Analyzer
PWRVIEW is a supporting software application for Windows PCs that compliments and extends the functionality of the PA1000. PWRVIEW enables you to do the following:
- Communicate with the PA1000 over any of the instrument comm ports
- Change instrument settings remotely
- Transfer, view, and save measurement data in real-time from the instrument, including waveforms, harmonic bar charts, and plots
- Log measurement data over a period of time
- Communicate with and download data from multiple PA1000 instruments
- Create formulae for the calculation of power conversion efficiency and other values
- Export measurement data to .csv format for import into other applications
- Automate instrument setup, data collection, and report generation for key applications with just a few clicks, using wizard-driven interfaces
- Perform automated full compliance testing for Low Power Standby per IEC 62301, Edition 2
- Additional test automation will be added with future releases

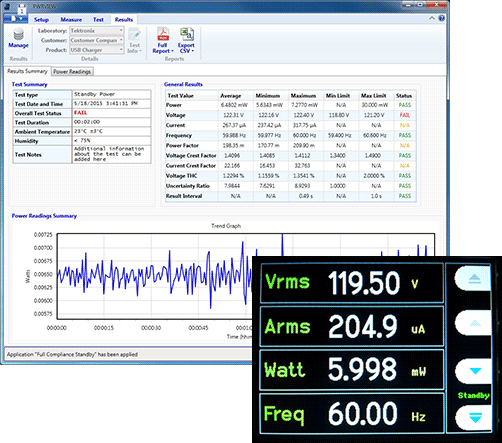

PWRVIEW full compliance test screen
Full test results report
Ordering information
Models
- PA1000
- Single-phase power analyzer
Standard accessories
- Voltage lead set
- Country-specific power cord
- USB host-to-device interface cable
- Documentation CD
- Includes user manual in English, French, German, Spanish, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, and Russian languages.
- Certificate of calibration
- Documents the traceability to National Metrology Institute(s) and ISO9001 Quality System Registration
- Five year product warranty
Recommended accessories
- BB1000-NA
- Breakout box (North America plug configuration)
- BB1000-EU
- Breakout box (Europe plug configuration)
- BB1000-UK
- Breakout box (United Kingdom plug configuration)
- BALLAST-CT
- Specialty current transducer for lamp ballast testing
- CL200
- Current clamp, 1 A - 200 A, for Tektronix Power Analyzers
- CL1200
- Current clamp, 0.1 A - 1200 A, for Tektronix Power Analyzers
- PA-LEADSET
- Replacement lead set for Tektronix Power Analyzers (one channel lead set)
BB1000-NA breakout box
The Tektronix breakout box provides an easy way to make wiring connections between your device under test and the Tektronix power analyzer. Your device power cord plugs directly into the outlet on the breakout box (choose the version that best matches the connector style for your geography).
Connection to the power analyzer is then simple, using the standard input lead set with 4 mm safety banana connectors that are provided as a standard accessory with the power analyzer.
Power plug options
- Opt. A0
- North America power plug (115 V, 60 Hz)
- Opt. A1
- Universal Euro power plug (220 V, 50 Hz)
- Opt. A2
- United Kingdom power plug (240 V, 50 Hz)
- Opt. A3
- Australia power plug (240 V, 50 Hz)
- Opt. A4
- North America power plug (240 V, 50 Hz)
- Opt. A5
- Switzerland power plug (220 V, 50 Hz)
- Opt. A6
- Japan power plug (100 V, 110/120 V, 60 Hz)
- Opt. A10
- China power plug (50 Hz)
- Opt. A11
- India power plug (50 Hz)
- Opt. A12
- Brazil power plug (60 Hz)
- Opt. A99
- No power cord
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. D1
- Calibration Data Report
- Opt. D3
- Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5
- Calibration Data Report 5 Years (with Opt. C5)
Модель | Количество каналов | Основная точность (V и I) | Максимальное входное напряжение | Максимальный входной ток | Полоса пропускания при измерении |
PA1000 | 1 | 0,04 % показания + 0,04 % диапазона | 600 Вср. кв. | 20 Аср. кв. | От 0 до 1 МГц |
Specifications
All specifications apply to all models unless noted otherwise.
- Voltage and current ranges
- Measurement accuracy - voltage
- Voltage accuracy, VRMS (45 Hz to 850 Hz) 1
- ± 0.05% of Reading ± 0.05% of Range ± 0.05 V
- Voltage accuracy, VRMS (10 Hz to 45 Hz, 850 Hz to 1 MHz, typical)
-
± 0.1% of Reading ± 0.1% of Range ± (0.02*F)% of Reading ± 0.05 V (typical)
- Voltage accuracy, DC (typical)
- ± 0.1% of Reading ± 0.1% of Range ± 0.05 V
- Effect of common mode (typical)
-
100 V, 100 kHz
- Measurement accuracy - current
- Current accuracy, ARMS (45 Hz to 850 Hz) 1
-
± 0.05% of Reading ± 0.05% of Range ± (50 µV/Zext)
- Current accuracy, ARMS (10 Hz to 45 Hz, 850 Hz to 1 MHz, typical)
-
± 0.1% of Reading ± 0.1% of Range ± (0.02*F)% of Reading ± (50 µV/Zext) (typical)
- Current accuracy, DC (typical)
-
± 0.1% of Reading ± 0.1% of Range ± (100 µV/Zext)
- Current - peak inrush accuracy (100 Apeak range)
-
2% of Range ± 20 mA
- Effect of common mode (typical)
-
100 V, 100 kHz, 20 A shunt
100 V, 100 kHz, 1 A shunt
100 V, 100 kHz, external shunt
- Measurement accuracy - frequency
- Frequency (10 Hz to 20 kHz)
- 0.1% of Reading, with the peak of the signal extending 10% above and 10% below the DC level
- Frequency (20 kHz to 1 MHz)
- 0.1% of Reading, with the peak of the signal extending 25% above and 25% below the DC level
- Measurement accuracy - power
- Watts accuracy1
-
± 0.075% of Reading ± 0.075% of Range (PF=1)
- VA accuracy 1
- ± 0.075% of Reading ± 0.075% of Range
- VAR accuracy (typical)
-
- PF Accuracy
-
Cos θ -cos [ θ± ( Vh1 ph.err± Ah1 ph.err)] ± 0.002
- Measurement accuracy - harmonic magnitude and phase (typical) 1
- Voltage harmonics magnitude (10 Hz to 1 MHz)
- ± 0.02% of Reading ± 0.1% of Range ± (0.04*F)% of Reading ± 0.05 V
- Voltage harmonics phase
- ± 0.1 ± [ 0.01 * Vrange / Vreading )] ± (0.2 / Vrange) ± ( 0.005 *F )
- Current harmonics magnitude (10 Hz to 1 MHz)
- ± 0.2% of Reading ± 0.1% of Range ± (0.04*F)% of Reading ± (50 µV /Zext)
- Current harmonics phase
- ± 0.1 ± [0.01 * Arange / Areading)] ± (0.002 / Arange * Zext)) ± (0.005 *F)
1F is the frequency measured in kHz. In the case of harmonics, F is the harmonic frequency.
Zext is the shunt impedance and must be less than or equal to 10 ohms.
Specifications are valid only when applicable voltage and current inputs are >10% of range. The exception is harmonics where the specification is valid when the magnitude of the harmonic is >2% of range.
Measurement conditions during calibration: Instrument default settings unless otherwise stated, Sine waves applied to V and I inputs, 30 minute warm-up, Temperature 23 °C ±5 °C.
Physical characteristics
Dimensions | mm | in |
Height | 102 | 4.0 |
Width | 223 | 8.7 |
Depth | 285 | 11.2 |
Weight | Kg | lb |
Net (without lead set) | 3.2 | 7.0 |
Temperature | C | F |
Operating | 0 °C to +40 °C | +32 °F to +102 °F |
Nonoperating | -20 °C to +60 °C | -4 °F to +140 °F |
