Tektronix PSPL5882

цена по запросу
шт.

Picosecond Pulse Labs теперь является частью Tektronix. Та же высокая производительность, которой вы привыкли ожидать от приборов Picosecond Pulse Labs, теперь доступна вам со всемирной поддержкой Tektronix. Широкополосные усилители и формирователи Tektronix предназначены для обеспечения лучшего отклика домена и идеально подходят для условий применения, при которых требуется широкополосная частотная характеристика и высокая скорость работы. Ниже представлена вся линейка усилителей, включая усилитель-формирователь 12,5 Гбит/с из ниобата лития и ряд широкополосных линейных усилителей с полосой пропускания до 35 ГГц.

Описание Характеристики Файлы

The PSPL5882 is extremely broadband, covering over 6 decades from 25 kHz to 35 GHz. It also demonstrates a very clean time domain response, resulting in high quality 40 Gb/s eye diagrams. The PSPL5882 includes internal reverse voltage protection, power supply regulation, and sequencing circuitry, making it insensitive to power supply voltage variation and application sequence.

Key performance specifications

  • Electro-Absorption Modulator driver or optical receiver amplifier
  • Linear amplifier with 16 dB gain
  • 25 kHz to 35 GHz bandwidth
  • 2.7 Vamp eye amplitude
  • 9 ps rise time

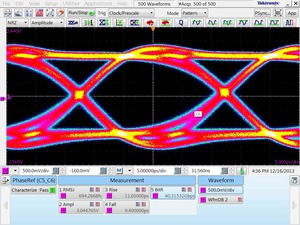

Typical 40 Gb/s eye measurements


Input from Tektronix PPG4001, PRBS = 231–1, 525 mV


Output amplitude, 3 V


Typical performance


S11, 5 dB/div, 5 GHz/div


S12, 10 dB/div, 5 GHz/div


S21, 1 dB/div, 5 GHz/div


S22, 5 dB/div, 5 GHz/div


Typical S21, S11, and S22 from 10 kHz to 50 GHz


Typical Group Delay (10 ps/div, 5 GHz/div, 0.8 GHz aperture)


Typical Step Response (input signal is 16 ps fall time)



Ordering information

Models

PSPL5882
AMPLIFIER, 40-45 GHz, 16 dB GAIN

Options

Opt. 240JJ
Female 2.4 mm connectors on Input and Output
Opt. 240JP
Female 2.4 mm connector on Input, Male 2.4mm connector on Output
Opt. 292JJ
Female 2.92 mm connectors on Input and Output
Модель Полоса частот Усиление Выходное напряжение Полярность Рассеиваемая мощность
PSPL5882 35 ГГц

16 дБ

2,7 Впик-пик

Неинвертирующий

1,3 Вт

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB freq. fc,h GHz 30  35    Relative to gain at 100 MHz
Lower 3 dB freq. fc,l kHz   25  40
Small Signal Gain S21  dB 14.5  16    Measured at 100 MHz
Gain Ripple   dB   ±1  ±2  50 MHz
Max Power Out
(-1 dB gain comp)
P1 dB dBm   12
11
  f 25 GHz ≤ f
Output Eye Voltage VOUT Vamp 2.4  2.7    Vin = 0.6 Vamp, 12.5 Gb/s PRBS
Input Return Loss S11 dB   -18
-10
-14
-8
50 MHz 10 GHz ≤ f
Output Return Loss S22 dB   -13
-10
-10
-8
50 MHz 10 GHz ≤ f
Rise Time tr ps     10-90%, root-sum-of-squares extraction, 16 ps system rise time
Fall Time tf ps
Overshoot   %     1 ns window, 16 ps system rise time
Undershoot   %
Noise Figure NF dB     Measured at 1.5 GHz
Group Delay Variation   ps   ±20  ±30  3 GHz 0.8 GHz aperture
Polarity Non-Inverting
Coupling AC, input and output
DC Connector Solder pins
Voltage Supply (+) +VDC VDC
Voltage Supply (-) -VDC VDC -5.5  -5  -4.5
Supply Current (+) +IDC mA   155
Supply Current (-) -IDC mA   10
Max Allowed Input   dBm     16  Input damage threshold
DC Voltage applied to RF Input or Output   VDC -4    Damage threshold
Operating Temp TCASE °C   70  Case temperature
Warranty One year

Mechanical dimensions





Connector dimensions
Connector Dimensions "a" / "b"
Type Female Male
2.92 mm 0.375 in (9.53 mm) 0.507 in (12.88 mm)
2.4 mm 0.430 in (10.92 mm) 0.513 in (13.03 mm)
