The PSPL5310R Phase-Matched Balun is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input while the other is inverted in polarity. The PSPL5310R uses proprietary technology that provides exceptional phase and amplitude matching. Popular uses for the PSPL5310R are in Analog-Digital-Converter (ADC) and differential Test & Measurement applications.
Key performance specifications
-
Excellent Phase and Amplitude Balance from 100 MHz to 4 GHz
- Operating range 4 MHz to 6.5 GHz
- Designed for use with ADCs
- Maximum input power > +20 dBm
Typical performance

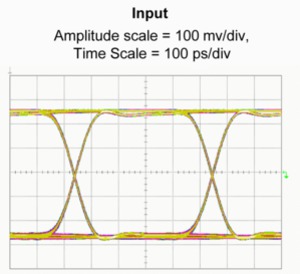

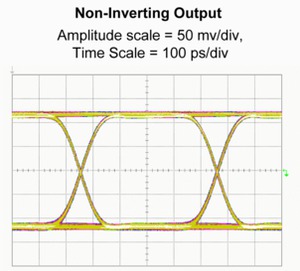

Response to 2 Gb/s NRZ signal with 27-1 PRBS pattern
Ordering information
Models
- PSPL5310R
- Phase-Matched Balun
Модель | Описание | Высокая частота -3 дБ | Низкая частота -3 дБ | Время нарастания сигнала |
PSPL5310R |
Согласованный по фазе симметрирующий преобразователь |
6,5 ГГц |
4 МГц |
54 пс |
Specifications
Parameter | Test Condition | Minimum | Typical | Maximum |
Risetime | 10% to 90% | 54 ps | ||
Bandwidth | -3 dB | 6.5 GHz | ||
Low Frequency Cutoff | -3 dB | 4 MHz | ||
Insertion Loss | 100 MHz 1 GHz 2 GHz 3 GHz |
6.9 dB 6.9 dB 7.1 dB 7.6 dB |
7.1 dB 7.3 dB 7.7 dB 8.1 dB |
|
Impedance | 50 Ohms | |||
Return Loss Input Non-Inverting Output Inverting Output |
100 MHz – 2 GHz | -30 dB -30 dB -15 dB |
-25 dB -18 dB -10 dB |
|
Delay | 320 ps | |||
Differential Amplitude Balance |
100 MHz – 3.0 GHz | ±0.1 dB | +0.3 dB -0.2 dB |
|
Differential Phase Balance |
500 MHz – 2.0 GHz | ±0.5 degree | ±2 degrees | |
Maximum Input | 100 MHz | +20 dBm | ||
Connectors | SMA jacks (f) | |||
Weight | 1.4 oz. (40 grams) | |||
Temperature Range | 0 to +70 °C operating, -40 to +125 °C storage | |||
Warranty | One Year |

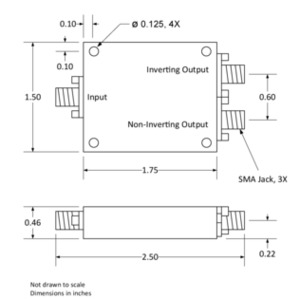

- Mechanical dimensions
